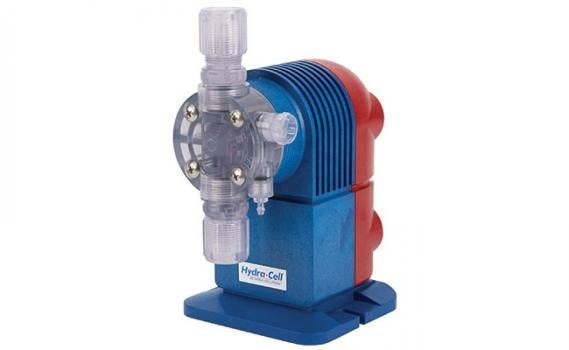

Designed for reliable and economical chemical injection, the Hydra-Cell Metering Solutions SM Series electronic solenoid metering pumps are available for a wide range of applications in food and beverage processing, pulp and paper mill operation, pharmaceutical processing, and other specialized manufacturing and chemical processing applications.They feature a simple hand-operated dial with stroke adjustment from 15 to 300 strokes per minute. Maximum discharge volumes range from 28 to 100 ml/min and maximum discharge pressure ratings from 58 to 217 psi (4 to 15 bar) depending on the model.
The pumps feature a double-ball check valve to help ensure metering accuracy and reduce the possibility of water hammer. An anti-siphon check valve prevents clogging at the injection point and aids in priming the pump. An optional integral relief valve releases abnormal pressure automatically if the pressure exceeds the pump’s capability, protecting it from damage. A foot valve is designed to prevent backflow into chemical injection systems. (Note: the anti-siphon check valve and foot valve are not used with special high-viscosity models.) All models are equipped with a protective secondary diaphragm.
SM Series metering pumps are dust-proof and wash down capable (IP65) for indoor or outdoor use, according to the company. High-impact PPO construction provides dimensional stability and high resistance to heat. All pumps can be used with AC100 to 240V (±10%) power supplies and are available with four different plug options (US, UK, European, and Asia). Pump head materials of construction choices include PVC, PVDF, 316 Stainless Steel, and Acrylic (for outgassing models) and PVC for high-pressure and high-viscosity models. Available options include a flow checker (except for Acrylic pump head models) that allows injection operation of the pump to be verified at low cost, and compact solution tanks in three sizes that combine the pump with a tank unit to offer large capacity in a space-saving design.
- Low Cost, Easy to Operate
- SM Models Manual Control
- Features a simple hand-operated speed stroke dial.
- Runs at a maximum of 300 strokes per minute and a minimum of 15 strokes per minute.
- Models for chemical injection, high-pressure boiler feed, and outgassing fluids.
- Temperatures ranges (ambient and transferring liquid) from 32?F to 104?F (0?C to 40?C).
- Light-weight models either 3.75 lb. (1.7 kg) or 4.0 lb. (1.8 kg).
- Low-noise, less than 85 dB.
- Stroke length fixed at 1.0 mm.
- Minimal parts for easy maintenance.
- Safety mechanisms to prevent air lock.
- Spare parts kits available to extend pump service life.
