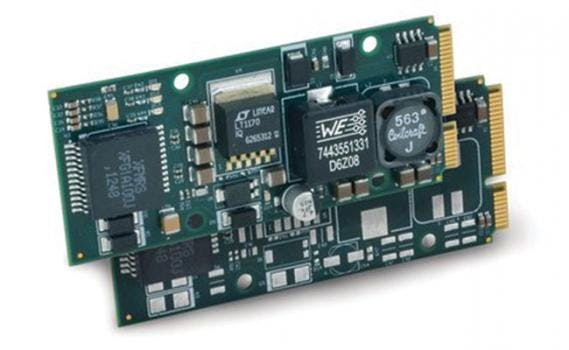

An addition to the PCIe-based AcroPack modules, the AP580 Series, provides a single Ethernet 10, 100, or 1000 Mbps port. An optional Power Over Ethernet (POE) model, AP580E-POE-LF, provides 52V DC and up to 10 watts of power to powered devices (PD). The POE Ethernet communication avoids other traffic on a network and is ideal for a video camera, VOIP phone, or any other PD devices. A down-facing plug-in 100 pin connector ensures a secure connection for your I/O. This board supports Intel i210 Ethernet controller PROset to assist with diagnostics, tests, and configuration. These modules plug into AcroPack PCIe, VPX, and XMC carriers in any combination for embedded applications running on Linux, Windows, or VxWorks operating systems.
For easy integration of the AcroPack modules with real-time software application programs, Acromag offers C libraries for VxWorks and other operating systems. The libraries provide generic routines (source code included) to handle reads, writes, interrupts, and other functions. Demonstration programs enable the developer to quickly exercise the I/O modules before attaching the routines to the application program. This diagnostic tool can save hours of troubleshooting and debugging.
This COTS line of AcroPacks are SWaP-C optimized, ROHS compliant and ideal for scientific development labs, military and aerospace applications, the defense industry and automation applications.
- Power over Ethernet as a power sourcing device
- Supports Intel i210 Ethernet controller PROset drivers
- Small form factor
- Intel 1Gb i210 Ethernet Controller
- Single port
- Failsafe receivers
- Audio Video bridging
- Jumbo frames
- Interrupt moderation, VLAN support and IP checksum offload
- PCIe optimized system power management
- Four transmit and four receive queues
- RSS and MSI-X to lower CPU utilization in multi-core systems
- Advanced cable diagnostics, auto MDI-X
- Error correcting memory in packet buffers
- CE compliant
- PCIe, XMC and VPX carriers
