MultiPoint Automatic Lubricator TLMP Series

July 15, 2017
SKF USA allows for multiple lubrication points with new lubricant system.

Automatically lubricate multiple bearing lubrication points in rotating equipment applications across a variety of industries with the MultiPoint Automatic Lubricator TLMP series.



It is a centralized and ready-to-use lubrication system with pluggable outlets and is packaged as a complete kit, designed for easy installation, and has user-friendly programming via keypad with LED display.



The TLMP system can supply from 1 to 18 lubrication points on a controlled and timely basis in order to deliver the proper lubrication amount at the required frequency to optimize bearing performance and equipment reliability.

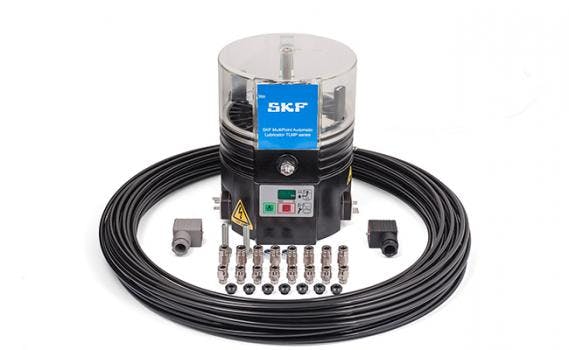

The TLMP series is equipped with a lubricator, required tubing, and connectors. The system features a durable metal housing, generous one-liter reservoir capacity, stirring paddle to prevent grease separation, and cycle control sensor to govern the ideal delivery of lubricant.



Maximum operating pressure of 120 bar (1,740 psi) can be achieved and the system can perform in temperatures from -25 to 70°C (-13 to 158°F).  With a high IP protection rating, the TLMP series is engineered to resist vibration, withstand repeated equipment wash downs, and prevent ingress of contaminants.



As value-added safeguards, the TLMP system features low-level and malfunction alarms with notifications even at remote locations – alerting when the reservoir is empty or when an outlet is blocked.  In addition, the system enables machine steering to temporarily disable lubrication by removing power.



Use of the system eliminates the typical challenges and issues associated with manual lubrication, including difficult-to-access lubrication points, over or under-greasing, equipment shutdowns during lubrication maintenance, and potential worker injury during their lubrication routes.

  • Easy to install and program
  • Complete kit
  • Suitable for one to eighteen lubrication points
  • Low-level and malfunction alarms; remote notification possible
  • Machine steering by removing power
  • Available in versions with different voltages
  • Developed for industrial applications, as well as agricultural and off-road vehicles
