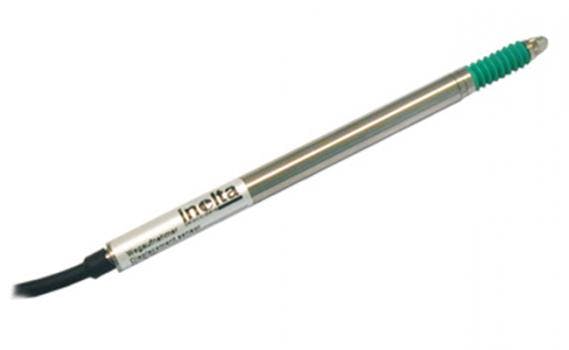

The Inelta ILAT Series Miniature LVDT Sensors provide precision measurements of position and path in the range of single-digit millimeters. The sensors are available in Models ILAT2, ILAT4 and ILAT10 for the exact measurements of ±1 mm, ±2 mm, or ±5 mm traveling distances. Due to the small dimensions with a housing length of 79 mm and a diameter of only 8 mm at a weight of 30 g (including cable), the sensors will navigate even within very tight-fitting conditions.
Because of the inductive LVDT principle (Linear Variable Differential Transformer), the ILAT Sensors operate free from wear and provide a linearity tolerance of <0.25%. They are also available with an even smaller linearity tolerance of <0.1%.
The ILAT Sensors have a robust design with a stainless-steel housing in protection class IP65 – optionally also in IP67. Nominal temperature rating is 0° – 70° C. The carefully designed linear guiding operates by virtue of a locking mechanism of the probe and can provide more than 10 million cycles. These versatile sensors are suitable for many applications, including medical technology, engineering, agriculture, and navigation up to testing facilities or manufacture of special purpose machinery.
Fitting the ILAT Path Sensors are the Inelta external sensor amplifiers IMA2-LVDT, available for signals in the ranges of 0-5V, 0-10V, ±5V, ±10V, 0/4-20mA and ISM-LVDT for 0-10V- or 0-20mA signals. Our print module IVM-LVDT with a readout of 0-10V signals is also available, suitable for integration into your electronics.
