Simple Solution for Copper Utilities

June 27, 2017
BURNDY Proved New solution For Copper utilities

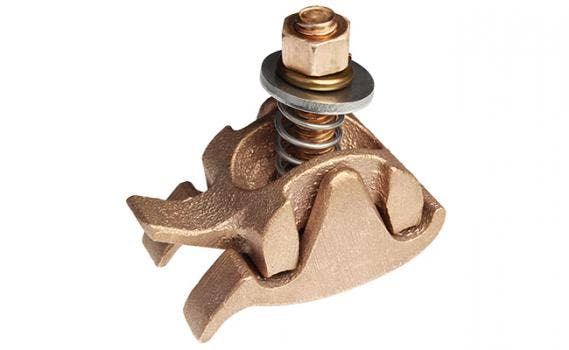

BURNDY has improved the industry standard parallel groove clamps by adding three unique features: spring loaded Lineman Assist, duckbill handle, and a conductor side entry capability. The CopperFASTAP improves the installation speed, safety, and reliability of the connection. The installation begins when the lineman squeezes the duckbill handle to allow the tap conductor to be side-loaded into the connector. This side entry feature enables faster insertion of the tap conductor and the spring assist then acts as a third hand by providing a constant force on the tap conductor and securing it. Using the duckbill as a guide, the lineman then snaps and tightens FASTAP onto the run conductor, completing the connection.



The Copper FASTAP duckbill design allows linemen to easily handle the connector with dielectric gloves in cold, wet, and icy environments. Add in the Lineman Assist feature and the linemen can now focus on getting the lights back on and not worry about the conductor falling out prior to tightening.

Features

  • Lineman Assist: Spring loaded feature that applies constant pressure on the conductor and acts as a third hand to hold the conductors in place to simplify installation.
  • Duckbill Handle: Duckbill feature acts as a handle to easily hold the connector while wearing dielectric gloves. The handle is especially handy in inclement weather.
  • Duckbill Lever: The duckbill also acts as a lever to easily open the tap side of the conductor to slide the tap conductor in from the side. Once inside the cable groove the Lineman Assist feature “holds” onto the conductor.
  • Duckbill Guide: The duckbill lastly acts as a guide to snap the conductor onto the Run conductor while the Lineman Assist™ feature holds onto the Tap conductor.
  • Conductor Side Entry: Simplifies installation of both the run and tap conductors.
  • Expanded Conductor Range: Reduces the number of connectors required to satisfy most applications.
  • Cover Option: Eliminates brush contact with connection.
  • Buy It Your Way: Several combinations of connector and options are available.
