Built-in Software Eases Pain

June 27, 2017
Aven Makes Life Easier With HDMI Camera that has built-in software

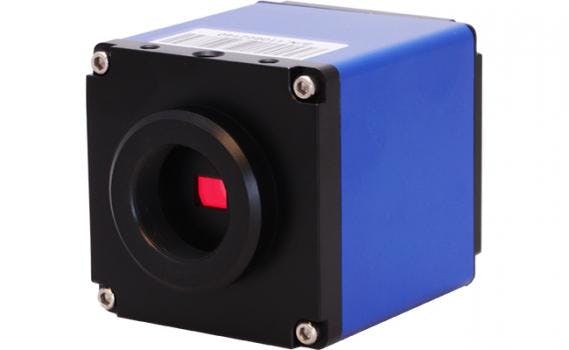

Aven's Mighty Cam HDMI Color Camera has integrated measurement software and an SD card, allowing for precise quality control inspection without a computer. The camera reduces workbench space, avoids software installation or updating, and removes compatibility concerns since it eliminates outside software. Operators only need a monitor as the camera’s HDMI port allows a direct link. Users can save five sets of measurement data on the SD card, simplifying comparisons and record-keeping.



Additional features include a calibration scale, crosshair grid for quick gauging, edge detection, and individual RGB contrast adjustments. The advanced software detects gray scale gradations and can measure a line, circle, radius, angle, and parallel lines in millimeters or inches. Video is captured at 30 frames per second on the built-in 4G memory card. Freeze-frame capability yields crisp, high-resolution images without motion blur and white balance and exposure can be automatic or one-click mouse functions.

Sensor Size

1/2.5?

Sensor Type

CMOS

Megapixel

2.0M at 24Bit

Frame Rate

30 fps (1920 x 1080)

Output

HDMI

Mount

C Mount

Resolution

1920×1080

Pixel Size

2.75 x 2.75?m

Pixel Count

1 pixel

Color

RGB

White Balance

One Push/Auto

Exposure

One Push/Auto

Contrast

Manual

Scan Mode

Progressive

Memory Card

4G SD Included (2~32G Capacity)

Cross Hair

No crosshair

Picture | Video Format

Bitmap

Shutter

33ms

Power

DC 5V, 1A

Dimensions

61mm x 61mm x 74mm

Weight

450g



Features

  • HDMI Color Camera with Built-in Measurement Software
  • Live/Freeze image function
  • Multiple measurement tools such as lines, circles and radius available in Manual Tab
  • Images and Measurement Data displayed can be exported to USB Flash Drive
  • Multiple cross hair for quick gaging
  • Mouse control provides ease of use
