FlexMove Helical Plain Bend Conveyors

April 20, 2021

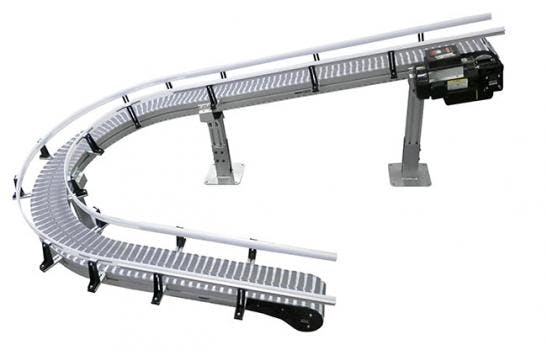

Gain unlimited configurations for added flexibility with the FlexMove Helical Plain Bend Conveyor from Dorner.

FlexMove Helical Plain Bend Conveyors provide customers with unlimited configurations, including flat to flat; flat to incline or incline to flat; or incline to incline. These configurations, which also include inclines and declines through corners and straights, provide great flexibility for applications involving product buffering—especially in corners. FlexMove Helical Plain Bend Conveyors also come with a patented side roller chain to reduce corner friction.

Features:

  • Reduces conveyor footprint
  • Allows incline or decline through corners and straights
  • Patented side roller chain reduces corner friction
  • Provides capability for product buffering in corners
  • Ideal for incline or decline in tight spaces

  • Available on FlexMove Conveyors: FS (65 mm); FM (85 mm); FC (105 mm); FL (150 mm); FU (180 mm); and FV (260 mm)
  • Minimum 500 mm radius helical bend corner
  • Corner angles: 45°, 90°, 135°, 180°, 225°, 270°, and 360°
  • Incline and decline angles up to 12°
    • Plain chain capable of incline/decline angles up to 7°
    • Friction chain recommended for angles of 7° to 12°
  • Available in bearing chain and non-bearing chain models
    • Load capacity for both: 300 lb.
    • Maximum speed for both: 180 ft/min
