Field-Installable M12 Connectors

Nov. 5, 2016
Series of field-installable M12 connectors allows the customization of cable type and length.

Series of field-installable M12 connectors allows the customization of cable type and length. This flexibility eases on-site installations, saving time and costs in applications including proximity switches, safety switches, and other miniature I/O devices and sensors.

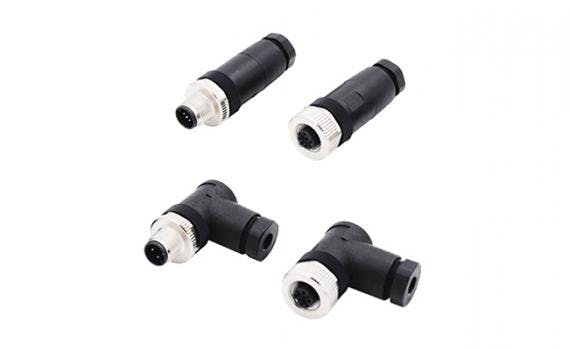

Available in straight and right angle versions, the connectors are designed to meet the IEC 61076-2-101 standard. To ensure connectivity in rugged and high-vibration environments, the IP67/IP68-rated male and female connectors are offered with coupling nuts in brass or stainless steel.



Specifications:

  • Pin configuration and termination vary from 3, 4, 5, and 8 pins with screw-in termination; 12 pins with solder termination
  • Metal and plastic unshielded connectors for cables with 4 to 7.5-mm OD
  • Rated voltage up to 250 v
  • Current rating up to 4 amp
  • Operating temperature of –25 to 85°C
