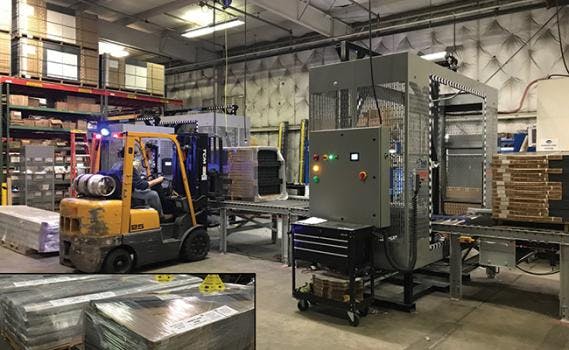

A line of automated orbital wrappers in the TAB Wrapper Tornado line wrap plastic film 360-deg. around and under the pallet and its load at the push of a button or by wireless remote control from a forklift. Featuring a proprietary sensor array, the orbital wrapping machines automatically sense the presence of a pallet load set on the load conveyor and calculate the pallet length and midpoint, then advance the pallet load into the wrapping ring. After wrapping the preset number of wraps at the front, middle and back of the pallet for the ideal amount of film coverage, the unitized pallet load advances to the discharge conveyor ready for transport or storage. When the wrapped pallet is removed from the discharge, the next pallet load automatically advances for wrapping using a single-in, single-out setup for a smooth, efficient workflow.
Developed to speed the packaging process with a hands-free, safety-first approach, the new, PLC-controlled orbital wrappers allow a single lift truck driver to manage the entire wrapping function without leaving his/her seat. The new line of stretch-wrappers comprises three standard models with 100, 80 and 40 in. wrapping rings and are available in custom sizes as needed.
