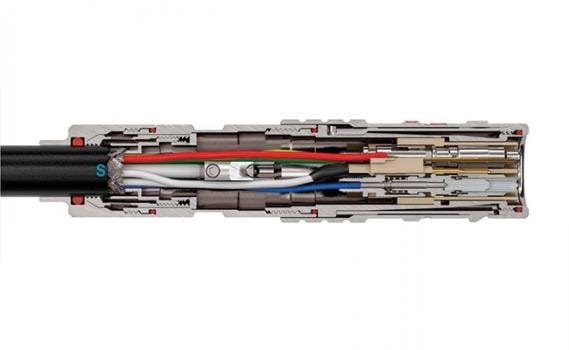

3K.93C.Y series are hybrid connectors for inter connection of HD video cameras. They are fully compatible with existing SMPTE and ARIB standards. This design has less components allowing easy assembly and reducing the termination costs for the hybrid fiber optic connector.
This connector has been engineered to be more tolerant of operator variations and therefore performance can be more easily optimized during the termination process. It includes a new contact called the FS fiber contact. In addition, the new insulator is made in two sections and the sideways insertion of the optical contacts prevent any push-back on the optical contacts. No more optical extractor is required to remove these contacts. Finally, the connector can be easily identified with its shell design and fiber optic contact shape.
Features:
- 2 fiber optic contacts
- 2 signal contacts
- 2 power contacts and ground
- Push-Pull self-latching
- Keying W code
- Over 11 shell styles
- Stainless steel shell
- Temp. range -55° to 90°C
- Shielded
- Conform to ARIB standard
- Conform to SMPTE 304 standard
- IP68
- For cable ø 8.6 to 9.5 mm
