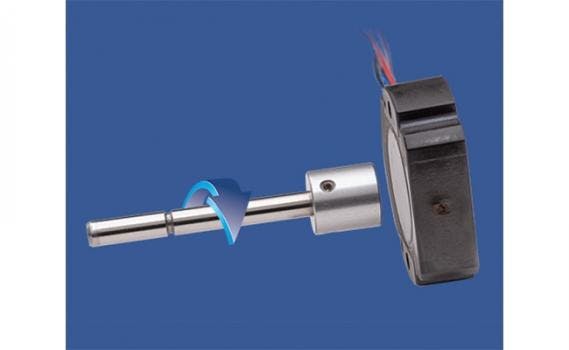

Available with IO-Link output interface, the RFC4800 Series of touchless angle sensors measure angular position up to 360-deg., revolution counter, and speed without wear.
Its serial communication protocol needs only three wires to simultaneously transmit measured values and status information. The status bit can signal a controller if a sensor needs replacement, and the controller can detect the new device and automatically configure it based on stored values, minimizing downtime.
Additional features include programmable zero point offset, measurement averaging, and sign of rotational direction. The series has a resolution of 14-bits across 360-deg., repeatability of ? ±0.36-deg., and independent linearity of ±0.5% of full scale.
The sensors are sealed up to IP69 and feature an operating temperature range of -40 to +221°F (-40 to +105°C).
- Measure angular position up to 360-deg., revolution counter, and speed
- Programmable zero point offset
- Measurement averaging
- Sign of rotational direction
- Resolution of 14-bits across 360-deg.
- Repeatability of ? ±0.36-deg.
- Independent linearity of ±0.5% of full scale
- Sealed up to IP69
- Operating temperature range of -40 to +221°F (-40 to +105°C)
