LiDAR Safety Scanner for AGVs

April 8, 2021

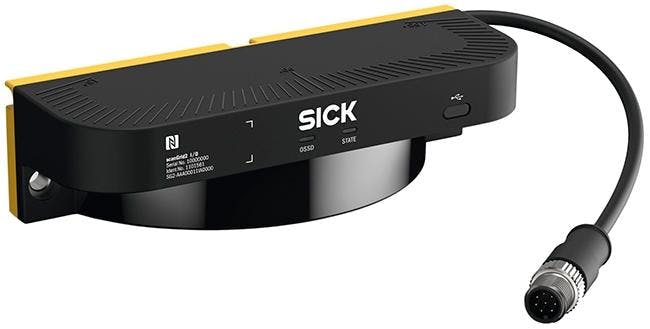

The scanGrid2 safe multibeam scanner is the first of its kind in the world; the compact sensor uses a novel and in-house developed solid-state LiDAR technology to increase the productivity of small autonomous and line-guided transport vehicles. Certified as a Type 2/SIL 1 safety sensor according to IEC 61496-3, the scanGrid2 can protect hazardous areas up to performance level c and works well for collision avoidance. An app and cloning function also ensure a high level of uptime and fast fleet deployment.



Conventional safety laser scanners are often not a suitable solution for these very simple and exceptionally cost-effective small vehicles for economic reasons. Users often choose between limiting the speed or payload of the vehicle or avoid operating them in unfenced areas to minimize the risks associated with the vehicles. The scanGrid2 now offers users new possibilities for successfully increasing the productivity of small autonomous and line-guided carts. Thanks to the rapid return on investment, switching to a safety sensor is now a viable option with initial installations showing productivity increases between 50 and 70%.



The scanGrid2 safely detects objects of a variety of sizes within the freely configurable protective field zones, can evaluate multiple fields, and can execute configurable monitoring cases. A warning field zone extending up to four meters beyond the safe working range can be employed for non-safety actions.



The solid-state LiDAR technology is based on the principle of time-of-flight measurement and eliminates all moving parts. Instead, the device uses only semiconductor elements in conjunction with geometrically arranged optics modules to span a protective field of 150-deg. Within the defined protective field zone, scanGrid2 can solve Type 2 classified, performance level c safety requirements in the context of safety applications.



The engineers at SICK have implemented an additional Near Field Communication (NFC) interface. This, in conjunction with the Safety Assistant app, enables diagnostics to be performed on the sensor quickly and easily, such as through a smartphone. The advantages of this approach are also readily apparent during commissioning or servicing. Sensor configurations transfer wirelessly from one sensor to another thanks to a cloning function in the app.

Safety levelType 2, PL c, SIL1, SILCL1Warning field range4 mScanning angle150-deg.Number of fields8/16Number of monitoring cases4/8Resolution (can be configured)50, 70, 150, 200 mmIntegration in the control systemLocal inputs and outputs (I/O) / fieldbus, industrial networkFieldbus, industrial networkCANopenConfiguration and diagnostics interfaceUSB 2.0 type C (Safety Designer)NFC (Safety Assistant app)
  • LiDAR multibeam scanner with safe solid state technology
  • Perfectly designed for the requirements of line-guided AGCs: PL c, 1.1 m scanning range, 150-deg. scanning angle
  • 43-mm high
  • Diagnostic data and clone function for configuration via the Safety Assistant app and the Safety Designer software
