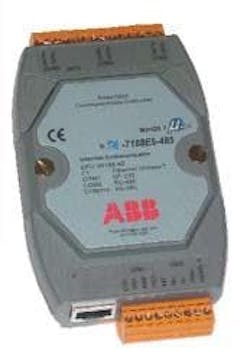

Typically used as an addressable Ethernet to RS-232/422/485 Converter, the versatile I-7188E5-485 can hold different embedded firmware and application programs to also be used as Device Server, or Embedded Internet/Ethernet Controller. The I-7188E5-485 can be used as an Ethernet to RS- 232/485/422 Device Server. The Device Server is an appliance that network enables any device with a serial communication port. By virtue of its independent operating system, protocol independence, small size and flexibility, Device Servers are able to meet the demand of virtually any network-enable application. Most devices don't have network ports. These communication controllers allow those devices to become connected to the network.
? 10BASE-T NE2000 compatible Ethernet Controller
? Reloadable Operating Software
? Routable Modbus Slave, DNP3 protocol support
? Diagnostics
? COM driver support interrupt & 1K QUEUE Input & Output buffer
? Built-in EEPROM
? Support one RS-232 ports and four RS-485 ports
? Built-in self-tuner ASIC controller on RS-485 port
? Built-in MiniOS7
? Program download port: COM1 or Ethernet Port
? SRAM: 512K bytes
? Flash Memory: 512K bytes; Erase unit is one sector (64K bytes); 100,000 erase/write cycles? EEPROM: 2048 bytes ( 8 blocks, each block has 256 bytes); Data retention > 100years; 1,000,000 erase/write cycles.
? Watchdog timer provides fault tolerance and recovery
? R.O.C. Invention Patent No. 086674, No.103060, No. 132457
? D/I: 3.5V~30V
? D/O: 100mA/30V
? Accessories: One download cable, one mini screw driver
? Operating temperature: -25oC to +75oC
? Storage temperature: -40oC to +80oC
? Dimensions: 123mm x 72mm x 33mm
? Power requirement: Unregulated 10~30 VDC with protection from power reversals
? Power consumption: 2W (without display)
? CE Certification; FCC Certification• CPU: Am188ES CPU @ 40MHz • SRAM: 384Kb • Flash Memory: 512Kb. Erase unit is one sector (64K bytes) • 100,000 erase/write cycles • NVSRAM: 31 bytes, battery backup, data valid up to 10 years • EEPROM: 2048 bytes (8 blocks, each block has 256 bytes) • Data retention: 100 years - 1,000,000 erase/write cycles. • Real Time Clock • Ethernet port: 10Base-T • COM1: RS-232: TXD, RXD, RTS, CTS, GND • COM2: RS-485: D1+, D1-, self-tuner ASIC inside • Communication speed: 115,200 bps max. • User defined I/O pins: 14 • Power requirements: 10 to 30VDC(non-regulated) • Power consumption: o 2.0W for I-7188E1, I-7188E2, I-7188E3, I-7188E4, I-7188E5, I-7188E8 o 3.0W for I-7188E1D, I-7188E2D, I-7188E3D, I-7188E4D, I-7188E5D, I-7188E8D • Operating temperature: -25ºC ~ 75ºC • Humidity rating: 10~90% non-condensing • Dimensions: 123 x mm x 72 mm x 33 mm • I-7188EX/DW: 123 mm x 64.5 mm x 19.6 mm • Din Rail Mount
Features
? Supports a variety of TCP/IP features, including TCP, UDP, IP, ICMP, ARP? 10BASE-T NE2000 compatible Ethernet Controller
? Reloadable Operating Software
? Routable Modbus Slave, DNP3 protocol support
? Diagnostics
? COM driver support interrupt & 1K QUEUE Input & Output buffer
? Built-in EEPROM
? Support one RS-232 ports and four RS-485 ports
? Built-in self-tuner ASIC controller on RS-485 port
? Built-in MiniOS7
? Program download port: COM1 or Ethernet Port
Specifications
? CPU: Am188TMES, 40MHz or compatible? SRAM: 512K bytes
? Flash Memory: 512K bytes; Erase unit is one sector (64K bytes); 100,000 erase/write cycles? EEPROM: 2048 bytes ( 8 blocks, each block has 256 bytes); Data retention > 100years; 1,000,000 erase/write cycles.
? Watchdog timer provides fault tolerance and recovery
? R.O.C. Invention Patent No. 086674, No.103060, No. 132457
? D/I: 3.5V~30V
? D/O: 100mA/30V
? Accessories: One download cable, one mini screw driver
? Operating temperature: -25oC to +75oC
? Storage temperature: -40oC to +80oC
? Dimensions: 123mm x 72mm x 33mm
? Power requirement: Unregulated 10~30 VDC with protection from power reversals
? Power consumption: 2W (without display)
? CE Certification; FCC Certification• CPU: Am188ES CPU @ 40MHz • SRAM: 384Kb • Flash Memory: 512Kb. Erase unit is one sector (64K bytes) • 100,000 erase/write cycles • NVSRAM: 31 bytes, battery backup, data valid up to 10 years • EEPROM: 2048 bytes (8 blocks, each block has 256 bytes) • Data retention: 100 years - 1,000,000 erase/write cycles. • Real Time Clock • Ethernet port: 10Base-T • COM1: RS-232: TXD, RXD, RTS, CTS, GND • COM2: RS-485: D1+, D1-, self-tuner ASIC inside • Communication speed: 115,200 bps max. • User defined I/O pins: 14 • Power requirements: 10 to 30VDC(non-regulated) • Power consumption: o 2.0W for I-7188E1, I-7188E2, I-7188E3, I-7188E4, I-7188E5, I-7188E8 o 3.0W for I-7188E1D, I-7188E2D, I-7188E3D, I-7188E4D, I-7188E5D, I-7188E8D • Operating temperature: -25ºC ~ 75ºC • Humidity rating: 10~90% non-condensing • Dimensions: 123 x mm x 72 mm x 33 mm • I-7188EX/DW: 123 mm x 64.5 mm x 19.6 mm • Din Rail Mount
