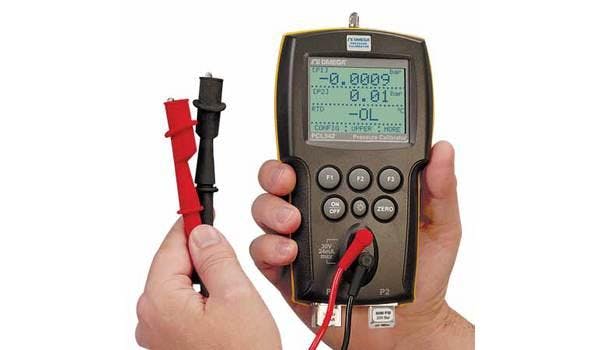

The PCL341/PCL342 series handheld pressure calibrator has internal, isolated, stainless steel pressure sensors with .025% FS accuracy. This small, rugged, compact designed product with its large graphic-style LCD with backlight has a triple display screen which shows process voltage and current, temperature, and pressure. The PLC341 is available in 9 ranges, the PLC342 comes in 2 ranges, and both models measure 4 to 20 mA loop current and up to 30 Vdc. The operating mode layers support simple as well as complex applications which makes this product great for gas flow calibration applications and industries where pressure and temperature measurements are needed.* Operating Temperature: -10 to 50ºC (14 to 122ºF) * Storage Temperature: -20 to 60ºC (-4 to 140ºF) * Power Requirement: 6 Vdc * Batteries: 4 standard "AA" cells (included) * Battery Life: >35 hours, typical usage * Dimensions: 21.082 H x 9.906 W x 4.572 cm D (8.3 x 3.9 x 1.8") * Weight: 0.567 kg (1 lb, 4 oz) * Connector/Ports: 1/8 NPT female (2 on PCL342), OMEGA PCL-PM pressure module and RTD
