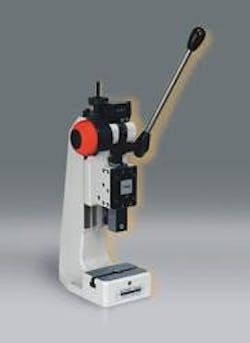

SCHMIDT Technology Corporation recently introduced its SCHMIDT® Toggle Press Model 13V with rectangular ram. When compared to a round ram, the rectangular ram is best suited when the application requires torsion-proof, 100% anti-rotational operation. To ensure precise, backlash-free ram operation and long service life, the press is equipped with adjustable and replaceable two-sided Teflon-lined flat gibs. The SCHMIDT® Toggle Press Model 13V can be ordered with a ram return stroke lock. Once the operator has completed the full ram stroke, the mechanism automatically releases and the handle returns to the ram home position assuring stroke completion and absolute repeatability of the pressing operation. This device is equipped with a spring-loaded quick release button to permit emergency release of the locking mechanism, in the event of improperly loaded parts, defective assembly components, missing parts and to ensure operator safety.A precision micrometer ram stroke adjustment accessory is also available to make quick and exact adjustments to the fully extended ram target position. A micrometer scale provides graduation in the .0008 inch line-to-line range. The SCHMIDT® Toggle Press Model 13V is available with a standard or ergonomic handle. The ergonomically-designed handle enables the press operator to achieve higher output levels and provides a more comfortable workstation. This side-mounted, offset handle can be incrementally adjusted to the proper position to suit the operator’s physical requirements. Also featured is an extended horizontal surface with a soft comfortable non-slip grip that significantly reduces muscle fatigue.• Nominal force lbs: 1125 • Working Stroke anch : 0.39-1.57 • Throat depth inch : 2.559 • Press head height inch : 15.16 • Ram bore mm : 10H7 • Angle of rotation : 95° • Spring restoring force : 1.35
