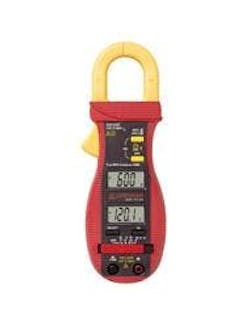

Amprobe Test Tools introduces the ACD-14 PLUS, a 600A clamp-on multimeter with dual display that allows simultaneous reading of amperage and voltage. Its complete set of measurement features makes it an ideal tool for HVAC and electrical applications.The ACD-14 PLUS features thinner jaws than standard clamp meters, allowing access to tight measurement areas while still accommodating conductors up to 28 millimeters. The versatile meter measures AC current to 600A, AC and DC voltage to 600V, capacitance to 3000 µF, resistance to 40MO, temperature (with Type-K thermocouple probe), and micro amps for testing flame sensors. It features a continuity buzzer, auto power off, and low battery indication—all in a compact and lightweight size.The ACD-14 PLUS 600A Clamp-On Multimeter with Dual Display comes complete with test leads, bead type thermocouple probe with banana plug, rubber over-molded carrying case and users manual. Optional accessories include the ELS2A line splitter and TL36A heavy-duty test leads with threaded alligator clips.• Display: 3-3/4 digits 4000 counts, dual LCD displays • Update Rate: 3 per second nominal • Polarity: Automatic • Low Battery Indication: 0°C to 40°C (32°F to 104°F) • Power Supply: Two 3V alkaline button batteries (ANSI/NEDA-5004LC, IEC-CR2032 • Size: L190mm X W 63mm X H 32mm (L 7.48” X W 2.48” X H 1.25”) Weight: 204 g (0.450 lb approx.) • Safety: CE EN61010-1, EN61010-2-032 - Pollution Degree 2
