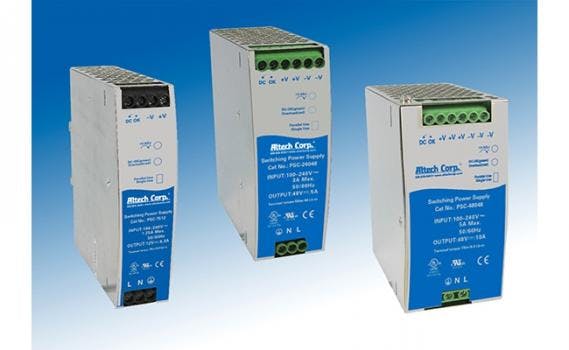

The compact PSC Family of power supplies contains five models that range from 75 to 480W of available power. The family has a universal input voltage range of 85 to 264 V AC and output voltages of 12, 24, and 48 V DC. Key features include a built-in current sharing function, current limiting, comprehensive output protection, and built-in active power factor correction. DC power and self-test LED indicators provide visual status of operation.
Dimensions range from 4.85 x 1.25 x 4.9 in. (123.2 x 31.8 x 124.5 mm) for the 75W supply up to 4.85 x 2.75 x 4.9 in. (123.2 x 69.9 x 124.5 mm) for the 480W unit. All supplies are DIN rail mountable.
The current sharing capability of these supplies enables users to connect them in parallel to support 1+1 to N+1 units for additional current availability or redundancy. Output protection the PSC Family provides are over-voltage, overload, short circuit, and open circuit.
Key PSC Family specifications include efficiency to 91%, 150% peak load capacity, and output voltage accuracy of ±1%. The operating temperature range is -13 to +158°F (-25 to +70°C).
Safety standards met by PSC Family supplies are UL508, UL60950-1, and EN62368-1. These units are also in compliance with EMC standards EN55032 Class B, EN61000-3-2, Class A, and EN61000-4-2, 3, 4, 5, 6, 11.
- Slim size
- Conformal coated PCB
- Parallel option available
- Universal input
