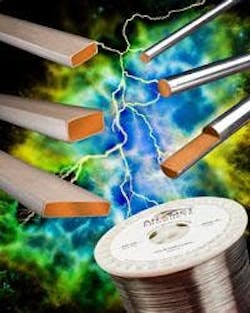

A full range of copper-cored titanium and nickel clad high conductivity rod, wire, and bus bar is designed for high current applications in hostile environments. Anomet High Conductivity Rod & Wire features a copper core with a metallur-gically bonded, clad outer layer to combine high current carrying capability with the ability to operate in hostile environments. Titanium clad copper (100% IACS) handles up to 1000 Amp/in2 current with superior corrosion resistance and nickel clad copper can withstand temperatures up to 1400°F; with specific performance dependent upon the application.Suitable for a wide range of applications, Anomet High Conductivity Rod & Wire is available with various ratios of metal to copper. For small high current hermetic switch applications, copper-cored glass-to-metal sealing wire is offered from 0.5 to 10mm dia. and for large conductors and electrodes, bus bars up to 12.7mm x 101.6mm are available.Anomet High Conductivity Rod, Wire, and Bus Bar are priced according to formulation, size, and quantity. Evaluation samples and price quotations are available upon request.• NICKEL (%) 27% • COPPER (%) 73% (Core) • DENSITY • grams/cc - 8.89 • lbs/in3 - 0.321 • ELECTRICAL RESISTIVITY at 20°C • ?-cm 2.3 • ?/cir mil-ft 14 • ELECTRICAL CONDUCTIVITY (% IACS) 70% • *Custom Ratios Available
