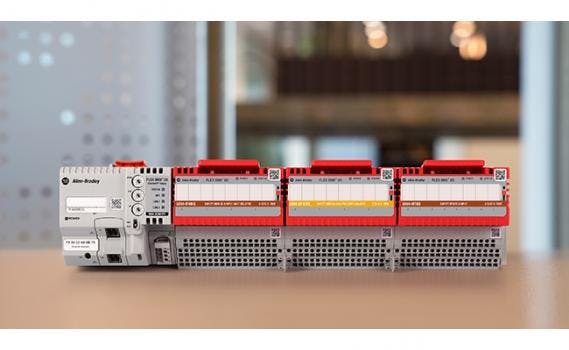

The Allen-Bradley FLEX 5000 Analog Safety I/O Modules can help process operators meet fail-safe requirements and minimize related downtime risks in a wide range of process applications. They are ideal for process applications where speed or frequency measurement, temperature, pressure or flow sensor monitoring are required for functional safety protection.
The modules offer integrated safety with systematic capability up to SC 3. They are TÜV certified up to SIL 3, PLe, Cat. 4. They also can be mounted in the same I/O bank with standard FLEX 5000 I/O modules to reduce system costs and complexity.
With these module additions, the FLEX 5000 product family now includes a complete portfolio of discrete and analog fail-safe I/O modules for a wide range of applications. Users can simply choose the I/O that meets their operational needs.
- Reduces system costs and complexity by mounting standard and safety I/O modules in the same I/O bank
- Integrated safety with discrete and analog fail-safe I/O modules, TÜV certified up to SIL 3, PLe, Cat. 4, with up to 10 ms safety reaction time
- Enhances communication with 1 Gb EtherNet/IP connectivity through copper or fiber, with SFP adapters
- Supports a wide range of network topologies: Device Level Ring, Star, Linear, and Parallel Redundancy Protocol
- Optimizes footprint with horizontal or vertical installation
- Allows users to replace modules while system is in operation with easy snap-on installation via Removal and Insertion Under Power (RIUP)
- Offers flexible and modular capability to support up to 32-channel digital and 8-channel analog input/output
- Operates in -40 to 158°F (-40 to 70°C) temperatures and in hazardous areas in Class I, Division 2, Zone 2, Groups A, B, C, D
- Allows for use in extreme environments with XT version up to G3 with conformal coating, which helps protect against environmental stresses
- Functions as remote I/O modules with ControlLogix 5580, CompactLogix 5380, and CompactLogix 5480 standard controllers and with GuardLogix 5580 and Compact GuardLogix 5380 safety controllers
- Supports ControlLogix 5580 controller redundancy for high-availability applications from Studio 5000 Logix Designer
Applications:
- Hybrid and Process applications
- Emergency shutdown
- Burner management
- Turbine control
- Compressor control
- Oil & gas auxiliary boilers
- High-pressure protection
- Lighting and ventilation management
