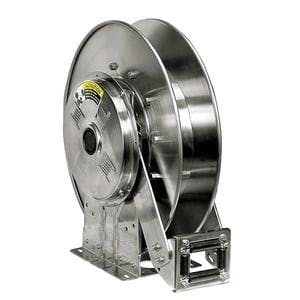

The SSN700 series stainless steel hose reel is specifically designed for heavy-duty applications and is compact and mountable in tight spaces. With no paint to chip and no potential for rust and corrosion, these reels are ideal for the food and beverage, dairy, pharmaceutical, and cosmetics industries as well as harsh environments. Typical applications include washdown, chemical transfer, potable water, food ingredient transfer, and fire protection. The SSN700 is constructed of fine grade 304 stainless frames, discs, and drums. It handles single hose from 1/4 to 1/2-in. ID and features a heavy-duty spring motor with self-contained rewind power.
- Standard SSN Series has a narrow frame and compact mounting base.
- Non-sparking ratchet assembly.
- Declutching arbor to prevent damage from reverse winding.
- Standard inlet: 90-deg. stainless steel ball-bearing swivel joint, 1/2" female NPT threads.
- Standard outlet: 1/2" female NPT threads.
- Standard pressures to 3,000 psi (207 bar).
- Fluid temperatures from +32 to +400°F (0 to +204°C).
- 4-way roller assembly.
- SR and VR roller positions: swivel joint is standard on the right, TR roller positions: swivel joint is standard on the left.
- 304 stainless steel construction.
- Optional SST Mosmatic ½" balanced pressure swivel joint available, subtract 1.50" from “F” dimension, specify when ordering.
