Center-Flow Bullet Magnets

Aug. 26, 2010

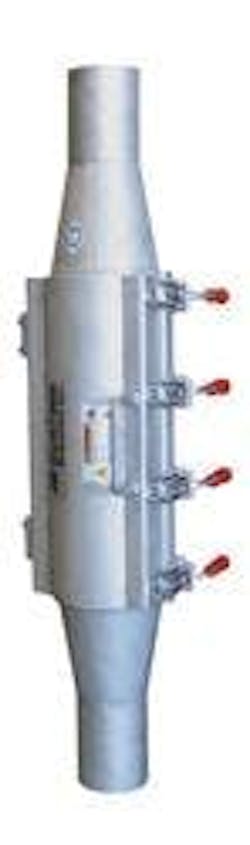

Center-Flow Bullet Magnets reduce the pressure drop through the housing and can be cleaned in seconds.



The design maintains a 15 psi rating for all types of dilute-phase pneumatic or gravity-flow conveying lines. It also features a one-piece gasket that improves sealing along the production line. This eliminates leaking which other models on the market can experience. Center-Flow Magnets are engineered to remove ferrous fines as well as larger pieces of tramp iron from dry particulates. To achieve optimum contact with the product flow, a bullet-shaped magnet is suspended in the centerline of the housing. This tapered, exposed-pole cartridge has a stainless steel “nose cone” to direct the flow of material around the magnet. The exposed poles provide superior holding force.



In addition, the poles are tapered to provide a static recess area where small metal fines can collect and hideout of the air stream to avoid wipe-off. The trailing end of the magnetic cartridge is an active pole, and any tramp metal that might be swept down will be collected on the “protected” end of the magnetic cartridge. The magnet housing features a hinged cover that opens exposing the magnet. The magnet is removed from the housing and is cleaned by wiping the tramp metal down the cartridge and off the end.



An optional clear sight glass is available which allows the operator to see inside the housing without opening the cover. The Center-Flow Magnet is available with ceramic or Rare-Earth magnets.

  • Designed for unobstructed product flow in dilute phase conveying up to 15 psi.
  • Available with all line and fitting types. Placement in vertical run makes optimum use of the magnetic field and ensures maximum efficiency in separation.
  • High-energy rare earth magnets are standard.
  • Optional clear view inspection port to observe separation process.
  • Comes standard with a tapered step face to prevent product wipe off.
  • 3 and 4-in. models are manufactured using a new bolt-on flange design for quick delivery
