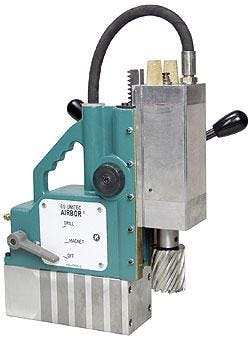

Portable Pneumatic Magnetic Drills - Airbor™ AB-4300-2

Pneumatic power for hazardous environments - holes up to 2-1/16" dia.

AIRBOR™ is inherently safer than electromagnetic drills in hazardous atmospheres and wet environments where electricity requires "hot work permits." ATEX approved.

• Industry's first completely air-operated magnetic drill — NO ELECTRICITY!
• Fail-safe permanent magnet is activated "on" and "off" by air pressure; in the event of a loss of air flow, the

magnet will not disengage
• Magnet has a holding strength of 1600 lbs.
• Powerful 1.6 HP drill motor
• Lightweight and portable
• Long drill stroke — up to 10-1/4"
• Drills up to 2-1/16" dia. holes with Annular Cutters
• Pressurized coolant system lubricates cutter and reduces risk of sparking
• One-year warranty

Model No.:  AB-4300-2 and AB-4300-2R  Motor Power (Pneumatic): 1.6 HP  Hole Capacity:  2-1/16" dia.  Twist Drill Capacity:  1/2" dia.  No Load Speed:  400 RPM  Air Consumption @ 90 PSI :  64 CFM  Magnet Base Size:  8-3/4" L x 3-1/2" W  Dimensions: 13-1/2" H x 12-1/2" L x 4-3/4" W  Magnetic Force (1" Plate):  1600 lbs.  Arbor Bore:  3/4" Automatic Lubrication:  Included Stroke Length 4-7/8":  Order Model AB-4300-2   Motor and magnet are powered completely by compressed air.
