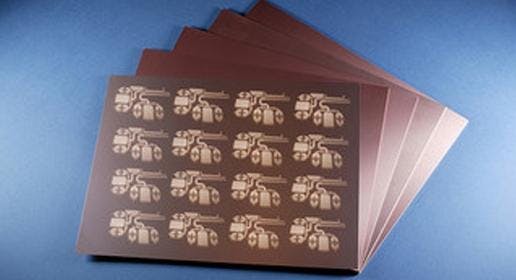

RT/duroid 6035HTC is a high-thermal-conductivity (HTC) laminate material engineered for low loss in high-power circuits. The fluoropolymer composite material is ideal for RF and microwave applications in military and high-reliability (hi-rel) applications required to handle high power levels, such as power amplifiers.
The laminates feature a relative dielectric constant of 3.5 at 10 GHz, making them suitable for a wide range of circuits, including amplifiers, couplers, filters, and power combiners/dividers employed in avionic and other military and hi-rel systems. The laminates incorporate a unique filler material to achieve superior heat-transfer characteristics compared to other high-frequency circuit materials with similar dielectric constant.
Exhibiting outstanding thermal conductivity of 1.44 W/mK as well as low loss, with a loss tangent of 0.0013 at 10 GHz, the laminates have excellent high-frequency performance. This combination of high thermal conductivity and low dielectric loss translates into improved amplifier performance. The high thermal conductivity and low loss result in excellent heat transfer away from high-power devices, such as transistors, for improved circuit and device reliability.
RT/duroid 6035HTC laminates are fabricated with thermally stable, reverse-treated, and electrodeposited copper foils. These low-profile copper foils help minimize conductor losses in high-frequency circuits, with the thermal stability needed for high reliability in high-temperature applications, even at the power levels found in many military electronic-warfare (EW) and commercial communications systems.
As an added benefit, the laminates are formulated for ease of processing compared to other high-thermal-conductivity circuit materials employing alumina fillers. The special filler material supports clean drill holes with minimal tool wear compared to alumina, for noticeably longer drill-bit lifetimes and higher drill-hole repeatability in volume production applications. The RT/duroid 6035HTC laminates are available in a variety of dielectric thicknesses and cladding options to support a wide range of high-frequency circuit applications.
- Dielectric constant of 3.50 +/- .05
- Dissipation factor of .0013 at 10GHz
- Thermal conductivity of 1.44 W/m/K at 80°C
- Thermally stable low profile and reverse treat copper foil
- High thermal conductivity
- Improved dielectric heat dissipation, enabling lower operating temperatures for high power applications
- Excellent high-frequency performance
- Lower insertion loss and excellent thermal stability of traces
