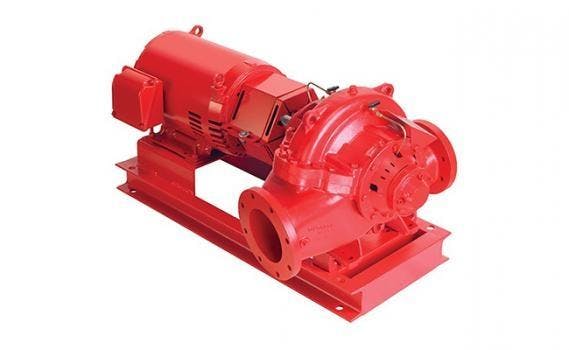

    Energy-Efficient Fireset Horizontal Split Case (HSC) Pumps

    July 13, 2018
    Armstrong's fire pumps offer easier installation in tight spaces.
    Related To: Armstrong Fluid Technology
    66674169c403780008474c9f 830 350
    830 350

    Update 07/2018



    The Fireset Horizontal Split Case (HSC) pump line has added two technologically advanced models: the 5x4x10NF and the 8x6x15NF.



    The 5x4x10NF fire pump is ideal for installations that require rated flows of 500 USGPM (1890 L/min) at pressures ranging from 55 to 167 psi. This performance range is perfect for applications such as high-rise buildings.



    The 8x6x15NF pump is designed for installations requiring rated flows of 1,500 USGPM (5,680 L/min) and 2,000 USGPM (7570 L/min) at pressures ranging from 54 to 168 psi. This performance range is perfect for medium-sized commercial applications such as shopping malls or smaller campuses.



    Compatible with both electric motor (50 Hz and 60 Hz) and diesel engine drivers.

    Fireset Horizontal Split Case (HSC) pump line has added two technologically advanced models: 5x4x17F and 6x5x12F.



    Featuring a tilted parting design to maximize efficiency by minimizing turbulence at the impeller eye, the new pumps are ideal for installations that require between 500 and 1,000 USgpm. Compatible with both electric motor (50 and 60 Hz) and diesel engine drivers, the Fireset HSC pumps offer a variety of features:

    • Double suction design for excellent operating efficiency and high flow performance
    • Superior mechanical features including suction and discharge alignment, dynamically balanced and fully enclosed impeller, factory-aligned pump and motor, protective bearing-removal mechanism, and removable upper-half casings for extended durability, excellent operating efficiency, and easy maintenance
    • The suction and discharge are on the same center line to allow sprinkler contractors to do re-piping in the pump room before the pump arrives
    • Pump design using industry-standard common parts (i.e. standard packing and gland) and tools for easy and cost-effective maintenance
    • Right or left-hand suction configuration with electric-driven pumps for easily adapting to mechanical room piping arrangements
    • Compact design (distance between suction and discharge flanges) for easier installation and maintenance in tight spaces



    The Armstrong line of Fireset HSC Pumps offers a performance range of 500 USgpm to 3,000 USgpm.
