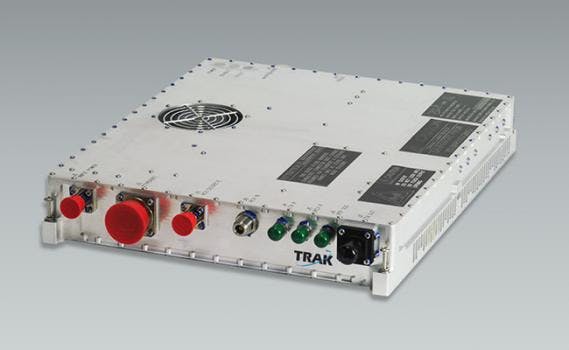

Compact 25-w Ku-Band Transceiver with GaN SSPA

Jan. 25, 2017
Ku-Band high power transceiver serves as a airborne Satcom solution, integrating needed GaN SSPA, upconverters, downconverters, and digital control technology.

Ku-Band high power transceiver functions as a complete airborne Satcom solution, integrating the necessary GaN SSPA, upconverters, downconverters, and digital control technology to offer a highly modular yet easily maintained system.

Specifications:

  • HPT can transmit from 13.75 to 14.5 GHz from an IF frequency of 950 to 1700 MHz
  • gain variation of less than 1.0 dB over any 36 MHz band
  • provides the frequency block down conversion from 10.7 to 11.7 GHz to the low band IF of 950-1950 MHz or from 11.7 to 12.75 GHz to the high band IF of 1100-2150 MHz.
