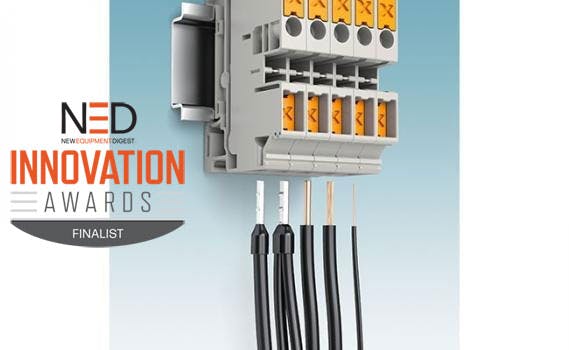

The XTV terminal blocks can accommodate the direct insertion of all conductor types: ferruled, solid or stranded wires. The XTV series features Push-X connection which uses a preloaded mousetrap design that keeps the leg spring depressed. As a result, the technician only needs to apply enough force to unlatch the spring and directly insert any type of wire. Furthermore, the terminal blocks close the gap in the PTV and PTPOWER lateral spring-cage terminals range.
2022 NED Innovation Award Finalist
Tapping the inserted conductor triggers the preloaded contact spring and automatically establishes safe contact. This reduces installation times and enables faster wiring without tools or force. To release the conductor, the technician presses the orange push button. The push button always displays the chamber position clearly, regardless of the conductor diameter and orientation of the terminal block.
The initial product range includes three cross-sections: 0.0093, 0.015, and 0.025 in2 (6, 10, and 16 mm2). The XTV family is fully compatible with the CLIPLINE complete terminal block system, making it easy to combine with other Phoenix Contact terminal blocks and accessories. All conductor cross-sections between 0.00022 and 0.29 in2 (0.14 and 185 mm2) can be wired in a space-saving manner.
The XTV series features a QR code in the product labeling, giving users the opportunity to access all the information, services, and support they need to use the product immediately and continuously. All product information is available worldwide in multiple languages and is always up-to-date.
Features:
- Three cross-sections: 0.0093, 0.015, and 0.025 in2 (6, 10, and 16 mm2)
- In addition to the standard gray terminal blocks, the product family includes other color versions
- Easy release and tensioning
- Greater flexibility
- Reduced installation times and testing
- Fully compatible with the standardized CLIPLINE complete terminal block system
Phoenix Contact
Middletown, PA
(800) 888-7388
[email protected]
www.phoenixcontact.com
