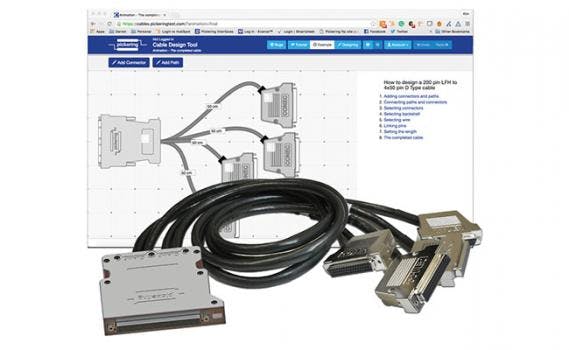

This graphics-based web tool allows users to create customized cable assemblies using very detailed design characteristics including a selection of connector types, wire type, pin definitions, pin and cable labeling, cable bundling, length selection, sleeving comments and more.
The cable design tool has a built-in library of standard cable sets that can be used as the basis for customization or cables can be designed from scratch. If a user gets stuck creating a cable, all they need to do is submit the semi-completed assembly and one of Pickering’s engineers will provide guidance through the complete process. When the customized cable assembly is finished, users just need to submit it for a quote.
Features:
- Built-in library of standard cable sets for customizing cables or designing from scratch
- Runs on all modern browsers
- Supported on all major tablet operating systems
