Threaded Standoffs for PC Boards

Jan. 18, 2017

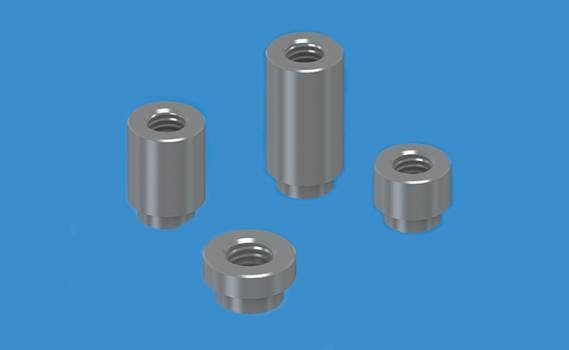

Series of threaded standoffs is specifically designed and packaged for use on PC boards in the same manner as other surface mount components.

Series of threaded standoffs is specifically designed and packaged for use on PC boards in the same manner as other surface mount components.



Made from steel with a tin plate, these standoffs can be added to the board using the same SMT equipment used to populate the board, thereby reducing scrap and handling time while minimizing damage to a PCB that may occur while using traditional mounting products ensuring easy reflow soldering for reliable solder joints.



They are ideal for use with most vacuum and mechanical pick-and-place assembly systems.



Threaded SMT standoffs are available in:

  • 2-56, 4-40 and 6-32 threads
  • lengths from 1/16 to 3/8 in.
  • on tape and reel with Kapton tape on top surface for easy pickup
