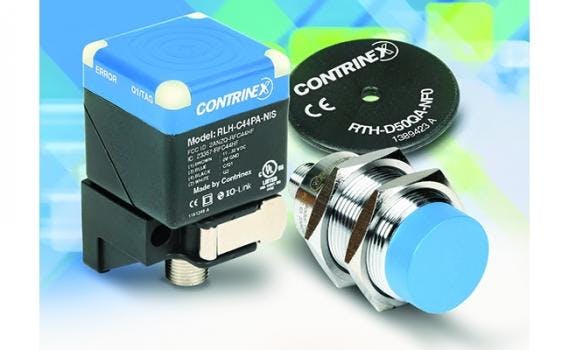

The Contrinex RFID Read/Write modules are available in 18 mm or 30 mm diameters and a 44 x 44 mm cube style with transmission ranges of up to 78 mm. These units can communicate to a PLC or other intelligent device using the popular IO-Link protocol.
RFID tags are available in 9 mm, 16 mm, 20 mm, 30 mm, and 50 mm sizes with user memory from 316 to 2,000 bytes using either EEPROM or FRAM memory. A high-temperature tag model is also available, and all products are IP67 and IP68/69K rated.
RFID Read-Write Modules
- Sizes available include M18, M30, and 44 x 44 mm cube style
- IO-Link V1.1 compatible
- Read/write distance of up to 78 mm
- HF RFID technology operates on 13.56 mHz and complies with ISO/IEC 15693
- Protection ratings of IP67, IP68, and IP69k
RFID Tags
- Sizes include 9 mm, 16 mm, 20 mm, 30 mm, and 50 mm
- User memory sizes from 316 to 2000 bytes
- High-temperature model with 160 bytes of user memory
- Protection ratings of IP67, IP68, and IP69k
- EEPROM tag features
- Unlimited read cycles
- 100,000 write cycles
- 4 bytes per block
- FRAM tag features
- Unlimited read cycles
- 1012 write cycles
- Up to 2,000 bytes of memory per device
- 8 bytes per block
