Sprue Grippers

Sept. 27, 2016
Portfolio of 100 Series sprue grippers now includes a model with exceptionally soft and quickly replaceable HNBR elastomer pads on the inner jaws.

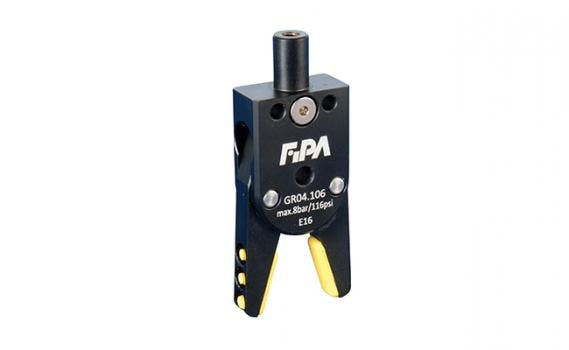

Portfolio of 100 Series sprue grippers now includes a model with exceptionally soft and quickly replaceable HNBR elastomer pads on the inner jaws. The GR04.106 grippers have anodized, high-strength aluminum alloy housings and clip-mounted jaw pads that facilitate removal and replacement.



Pads on the single-acting, non-sensing sprue gripper are elastic, low-marking, low-abrasion, wear-resistant, and free of silicone and paint wetting impairment substances.They resist temperatures from –22 to 320°F.

Specifications:

  • 10-mm clamping diameter
  • max 28 N gripping force at 6 bar operating pressure
  • operate in environments with filtered and either oiled or unoiled air
  • weigh only 1.69 oz
  • suitable for EOAT applications
