Proportional Level Output Detector

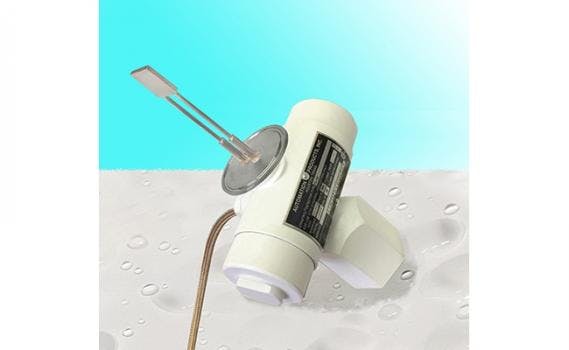

The Dynatrol CL-10GP CIP Proportional Level Detector is designed specifically to control liquid levels in food and beverage processing, small vessels or anywhere it is necessary to obtain proportional level control over a precise range. Excellent applications may include fruit juices, vegetable juices, plant-based waters, fructose, corn syrup, sugar liquor, fats, oils, and slurries. The EC-103C(G) Control Unit is paired with the Detector and can activate electro-pneumatic transducers, valve positioners, indicators, controllers or other DC current devices.
The Dynatrol CL-10GP CIP Proportional Level Detector and EC-103C(G) Control Unit accurately monitor and control an extremely precise liquid level range due to its unique high-resolution, proportional output signal. This unique control operates reliably under varying frequency power supplies, high temperatures or harsh process conditions.
Installation is simple, and the separate Control Unit permits installation at any convenient location. The Detector is mounted through a ¾-in. half-coupling at the point of desired level detection, eliminating costly flanges, float chamber or fittings. The Dynatrol CL-10GP Proportional Level Detector and EC-103C(G) Control Unit operate on either a 50 or 60HZ power supply.
Dynatrol Detectors are constructed for a long operating-life and provide years of dependable service in industrial environments. All units are built in accordance with Class I, Group D; Class II, Groups E, F & G; and Class III services.
?
