Explosion Proof Fluorescent Lights - Paint Booths, Rigs - 4', 2 Lamp Fixture - Bi-Axial Bulb Design - Larson Electronics LLC

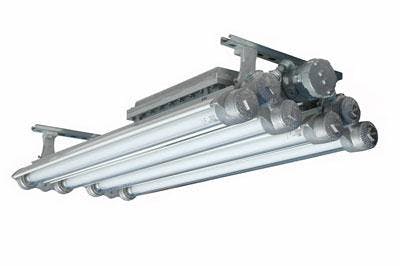

The Magnalight EPL-48-4L-BX Explosion Proof Four Bi-Axial Bulb Fluorescent Light Fixture is U.S./Canada U.L. approved Class 1 Division 1, Class 1 Division 2, carries a T6 temperature rting and ideal for hazardous locations where flammable chemical/petrochemical vapors exist or have the potential to exist.
The EPL-48-4L-BX fixture is a 4 foot long, 4 lamp, UL listed Class 1 Division 1 and Class 2 Division 1 & 2 explosion proof fluorescent light which is also approved for use in paint spray booth applications. This T6 temperature rated fixture comes standard with eight Bi-Axial 40 watt compact fluorescent bulbs which produce a combined 320 watts of illumination. The lamps are protected by heat and impact resistant Pyrex tubes and the fixture is constructed of copper free aluminum alloy. The lamp reflectors are corrosion resistant heavy gauge aluminum and coated with a high gloss reflective finish. The EPL-48-4L-BX provides operators in hazardous locations with an effective explosion proof lighting solution that provides more light than similar two bulb units.
| EPL-48-4L-BX Explosion Proof | U.L. Ratings |
| UL Listing: United States - Canada | Class 1 Division 1, Groups C and D |
| Dimensions: W-11.25" L-52" H-8.5 " | Class 1 Division 2, Group A,B,C,D |
| Weight: 65 Lbs | UL 595 Outdoor Marine Type (Saltwater) |
| Total Watts: 320 watts | UL 844, 924 |
| Voltage: 120V-60hz 220V-50hz 240V-60hz 277V-60hz | UL 1598 Marine Type |
| Optional Voltages: 347 Volt and 480 Volt | Class II Division 1- 2, Groups E,F,G |
Ambient Temp. Operating Range: -30C to 70C | UL Certified Canadian Standards |
| Operating Temp Range: T6 Rated | UL listed for Paint Spray Booths California Title 24 Compliant |
| Minimum Operating Temp: -30 C Maximum Case Temp: 90 C | |
| Beam Angle: N/A | Special Orders- Requirements |
| Color Temp: N/A | Contact us for special requirements |
| Mounting: Bracket Standard - Pendant Optional | |
| Wiring Hub: 1/2 inch threaded | |
| U.L Approval: U.S Certificate Canada Certificate | |
| *5 year warranty replacement on this LED light (or LED bulbs for light fixtures with removable LED bulbs). After 30 days, the customer ships the failed LED light and/or LED bulb to Larson Electronics’ Magnalight at their expense. If the failure is a manufacturer defect, we will ship a new replacement to the customer. If failure occurs within 30 days of receipt, Larson Electronics Magnalight will provide a return label via email to the customer. When the failed light is returned, Magnalight will ship a new replacement. |
