Gen4 CAPE TFT LCD Display for BeagleBoards

June 9, 2017
4D Systems has provided an entire series of displays for the beagleboard.

The gen4 CAPE series of TFT LCD display capes are designed specifically for use with the BeagleBone Black Single board computer. The gen4 CAPE series suits a wide range of applications that require a high-quality, easy-to-use, and compact graphical display (monitor) to be incorporated into a BeagleBone Black-based design. The BeagleBone Black Wireless and BeagleBone Green boards are also supported.

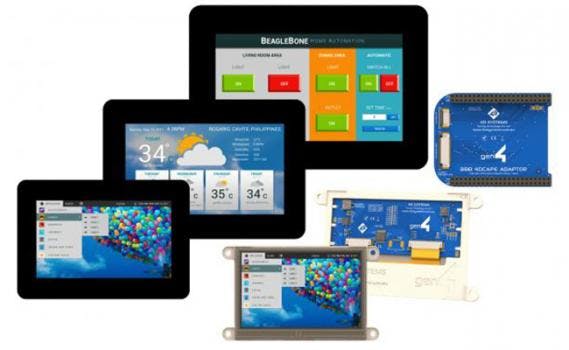

The series comprises 4.3, 5, and 7-in. models, each equipped with a 30-pin robust FPC cable that plugs into the supplied gen4 CAPE adapter board. Power, control, and data signals come through the FPC so no additional connectors are required to operate the display. The use of an adapter board permits ease of using different display sizes to suit the application. In addition, each gen4 CAPE has the choice of either resistive or capacitive touch options.



The resistive touch function uses an on-board Microchip AR1021 resistive touch controller that communicates directly with the BeagleBone Black over I2C in place of traditional LCD capes which utilize the analog inputs that are rather susceptible to external EMI. The capacitive touch models incorporate a cover lens bezel that enables the construction of a robust yet slim design with ease, utilizing Focaltec CTP controller that communicates over I2C.

  • Primary Dislplay LCD Cape for the Beagle Bone Black in gen4 form factor
  • 5 in. LCD TFT
  • 800 x 480 px resolution
  • Resistive touch
  • Optional push buttons via an external button board are available on request, enabling LEFT, RIGHT, UP, DOWN, ENTER, RESET, and POWER functionality
  • EEPROM CAPE ID selection via DIP switch
  • RoHS and CE-Compliant
