Portable Explosion Proof Transformer - Input 220V / Output 4, 120V OR 12/24V Class I Div 1 Outlets

Made in the USA

The Magnalight EPL-TX-200-4X120 explosion proof 500VA transformer converts 220/240V 50/60Hz current to 120 VAC 50/60hz secondary output depending upon its configuration. Optional configurations include 220/240V 50/60hz to 12 Volt or 24 Volt AC or DC low voltage. This portable transformer is ideal for powering explosion proof lights or related equipment.

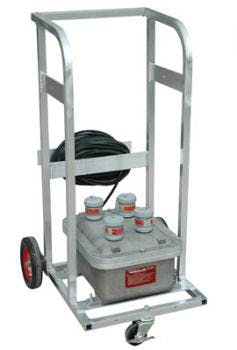

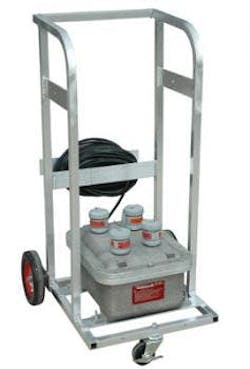

The EPL-TX-200-4X120 explosion proof portable transformer from Magnalight is built to provide operators in hazardous locations with a method of stepping down single phase high primary voltages to safe and reliable 120 VAC 50/60hz current or low voltage 12 or 24 Volt AC or DC output. This unit includes four explosion proof receptacles rated at 20 amps each. This compact power distribution system is designed for portability and convenience as well as durability and is mounted to a wheeled, non-sparking aluminum frame for added protection.

This portable step down transformer features four Class 1 & 2 Division 1 and 2 receptacles with twist lock operation to provide protection against sparking in hazardous environments. The four outlets and standard output voltages of this step down transformer make it a popular choice for operating our 100 watt explosion proof drop lights and work lights. Overseas operators will find this unit ideal for converting their higher European and overseas voltages to common standard American voltages when operating American equipment.
