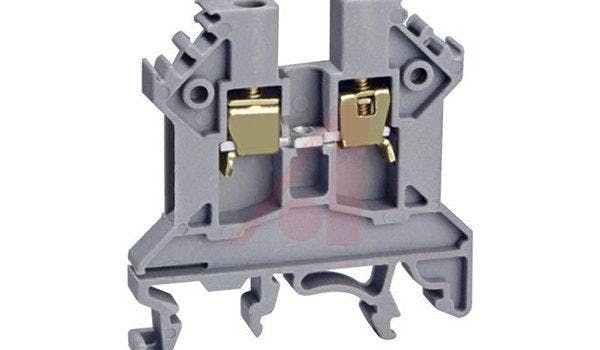

Conn; Term Blk; DIN Rail; Feed Thru; 32/35 mm; 43 mm L x 45 mm H; 6 mm; Gray

Feed-Through Terminal Blocks, DIN Rail Mounting Type Standard terminal blocks feature a universal foot for mounting on 35 mm or 32 mm DIN Rail. Ground Blocks are designed for either 35 or 32 mm rail. High-density design features screw-cage clamps for reliable connections.  Material: Polyamide 6.6.  Ratings: 600 V or 300 V. UL, CSA, IEC/VDE.It is most versatile terminals for wire-to-wire connection in control, automation, instrumentation and power distribution applications. A special design feature on the flexible foot enables easy mounting and dismounting from the DIN rail with the help of a screwdriver.

Voltage, Rating: 600V  |  Torque: 7 lb. in. (cULus Recognized, CSA Certified), 0.5 Nm (VDE Approved)  |  Agency Approvals: cULus, cCSAus, VDE  |  Material: Polyamide 6.6  |  Dimensions: 43 mm L x 45 mm H  |  Primary Type: DIN Rail  |  Mounting Size: 35mm  |  Type: Feed-Through  |  Current, Rating: 35?40A  |  Brand/Series: U Series  |  Level: Single Level  |  Application: Wire-to-wire connection in control, automation, instrumentation and power distribution applications  |  Termination: Screw  |  Pin Spacing: 6mm  |  Width, Terminal: 6mm  |  Wire, AWG: 22-10  |
