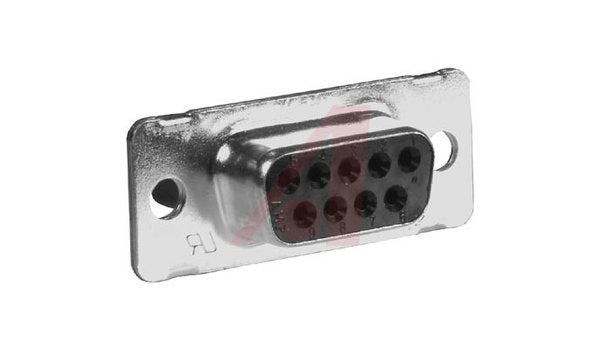

D-Sub Receptacle; Steel; Crimp Snap; Female; 1; Tin

Receptacle Gender, Subminiature and Microminiature D Connector Choice of zinc-plated shell or tin-plated shell with grounding indents on the plugs. Insert is black thermoplastic, rated 94V-O.  Contact Rating (with 20 AWG Wire): 7.5 amps.  Termination Resistance: 5K megohms.  Engagement Force: 12 oz.  Separation Force: 0.75 oz.  Mating Force: 8 oz. per contact. CONTACTS NOT INCLUDED. Select contacts from those offered below. Recognized under the components program of UL, Inc., File No. E28476. Certified by Canadian Standards Association, File No. LR 16455. Uses contact size 20 DF contacts.Plugs Have Grounding Indents

Material, Shell: Steel  |  Strain Relief: Straight  |  Type: Cable Socket  |  Number of Contacts: 9  |  Material, Housing: Steel  |  Primary Type: D-Subminiature  |  Flammability Rating: UL 94V-0  |  Finish, Housing: Tin  |  Gender: Female  |  Application: Commercial  |  Brand/Series: HDP-20  |  Plating, Shell: Tin  |  Termination: Crimp  |  Shell Size: 1  |  Number of Rows: 2  |  Angle: Straight  |  Voltage, Rating: 250VAC  |  Agency Approvals: UL Recognized, UL Listed and CSA Certified  |
