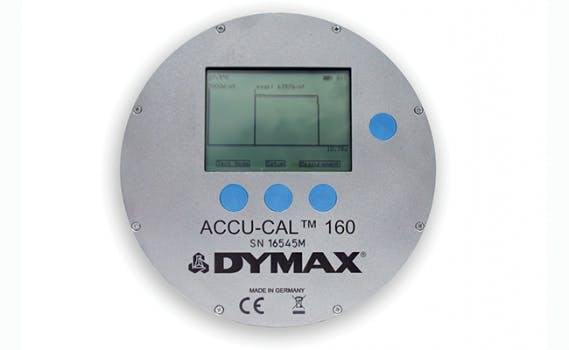

ACCU-CAL 160 Radiometer Simplifies UV/LED Light-Curing

Dec. 21, 2016
ACCU-CAL 160 radiometer simplifies the validation and monitoring of UV or LED light-curing up to 10 w/cm2.

ACCU-CAL 160 radiometer simplifies the validation and monitoring of UV or LED light-curing up to 10 w/cm2 emitted from stationary light-curing flood lamps or lamps used in conveyorized processes.



It provides a quantifiable measurement that verifies if the light-curing process is operating within qualified parameters, to reveal the optimal time for bulb replacement for a UV-light curing device. Compared to the ACCU-CAL 150, the 160 has a longer calibration cycle of 12 months instead of 6 and is calibrated by Dymax facilities in the U.S., Europe, and Asia.



Radiometers establish process parameters and, when maintained, help ensure consistent production quality resulting in reduced scrap and increased throughput.

Spectral Sensitivity328 to 382 nm (UVA model) 350 to 460 nm (LED model)Intensity Range1.0 mW/cm² to 10 W/cm²Accuracy+/- 0.5%ResolutionIntensity (1 mW/cm²) Dose (1 mJ/cm²)Calibration Period12 monthsOperating Temperature Ranges0 to 75°C internal temperature; tolerates high external temperatures for short periods (audible alarm indicates when temperature has exceeded tolerance)MeasurementsPeak intensity (mW/cm²) Dose (mJ/cm²)Light SourcesDependent on Model; UV or LED light-curing flood lamps and conveyor systemsPower SupplyLithium polymer battery, 800 mAh, charged via USB interface (Mini-B), 5 VDC, 500 mABattery Life10 hours (backlight on, no operation) or 6 hours (backlight on, full operation)
