CO2 Laser Beam Splitters

March 23, 2018

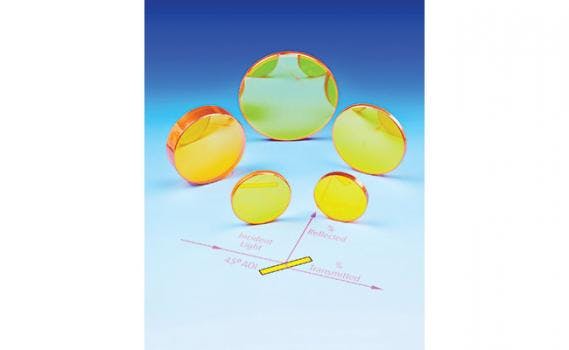

Laser Research Optics' beam splitters are drop-in replacements for engraving.

CO2 Laser Beam Splitters permit up to 50% transmission and ±3% of reflectance to facilitate power measurements and beam alignment. Drop-in field replacements for engraving, marking, and scribing lasers, they are available from stock with overnight delivery to reduce downtime.



Made in 0.75 and 3 in. (19 to 76 mm) O.D. sizes from ZnSe with various coatings to achieve their polarization states, Laser Research CO2 Laser Beam Splitters are designed to reflect a specific percentage of the incident energy while transmitting the balance. A 45-deg. AOI and 10.6 microns are typical.
