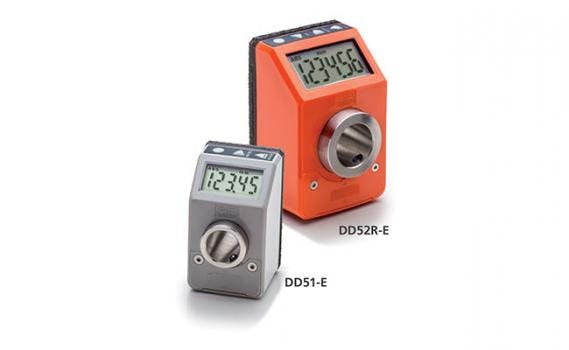

Direct drive electronic position indicators provide excellent readability with up to 12 mm LCD displays and up to 6-digits. They are designed for use in dirty or wet environments with IP65 and 67 ratings available. Flexible programming allows units to be displayed in mm, inches or degrees; absolute or incremental; right or reverse orientation. Cases are resistant to solvents, oils, greases, and other chemical agents. Long-life lithium batteries ensure a battery life of up to 8+ years.
Base and case
- High-resistance polyamide based (PA) technopolymer
- Resistant to solvents, oils, greases, and other chemical agents
Display
- 6-digit LCD of 0.47 in. (12 mm) height and special characters
- Values displayed in mm, inches or degrees
- Display of mode for use (absolute or incremental mode)
- Reading orientation (right or reverse)
Shafts
- 14 and 20-mm shafts for metric reading
- 0.5 and 0.75-in. shafts for inch reading
Window
- Transparent polyamide-based (PA) technopolymer
- Molded over the case and sealed
- Resistant to solvents, oils, greases, and other chemical agents
Standards
- To meet IP65 or IP 67 protection class
