HHP650 Series AC/DC Power Supplies

Feb. 25, 2014

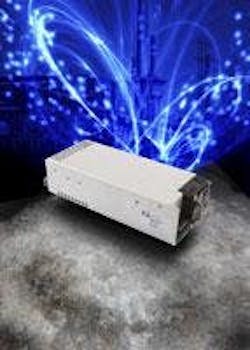

The HHP650 Series of fan-cooled rugged AC/DC power supplies are designed for heavy-use industrial applications where a more robust unit is required. These single output 650 W units can accommodate the extended voltage input range from 85 to 305V AC and can deliver up to 780 W at high-line input.



The series has a peak power capability that provides up to 800 W at low-line and 1,000 W at high-line for a maximum of 10 seconds. Suitable for use in the most demanding of industrial environments, the units conform to the shock and vibration specification of MIL-STD-810F, and have immunity to voltage sag as stipulated by semiconductor manufacturing standards SEMI-F47, and can withstand a 6 kV surge as defined by IEEEStdC62.41.



The series comprises six models providing nominal output voltages from 12 to 48V DC. A trim function provides the adjustment of +/- 10% from the stated nominal output in order to cater to non-standard voltage requirements. An auxiliary always-on output of 5V/0.2A can be used to power logic and memory functions. Protection and control signal features include DC OK, remote on/off, remote sense, overvoltage, short circuit, and over temperature. Single wire current sharing can also be incorporated when the additional output power is required, or to build in redundancy.



Dimensions9.99 x 4.20 x 2.50 in. (253.8 x 106.8 x 63.5 mm)Input Voltage85 to 305V ACHarmonic CurrentsEN61000-3-2 Class AEfficiency85% typicalOperating Temperature-40 to 158°F (-40 to +70°C)Isolation3,000V AC Input to Output
2,000V AC Input to Ground
500V AC Output to GroundWorldwide Safety ApprovalsIEC62368-1, IEC60950-1European Safety ApprovalsEN62368-1US Safety ApprovalsUL62368-1, CSA62368-1 via cUL, UL508,
CSA 22.2 No. 107.1-01, ANSI/ISA 12.12.01-2000Other Safety ApprovalsEquipment Protection Class IEMCEN55011/22 level B conducted EN55011/22 level A radiated
