CONNECTOR,EZ-RJ45 MODULAR PLUG,CATEGORY5,FOR TWISTED PAIR CABLES

Feb. 6, 2014
Modular Plugs, Gold Plating Contact, 24 to 26 AWG Wire Size Connector, EZ-RJ45 Modular Plug, Category 5, for twisted pair cables The new patented EZ-RJ45™...

Modular Plugs, Gold Plating Contact, 24 to 26 AWG Wire Size
Connector, EZ-RJ45 Modular Plug, Category 5, for twisted pair cables

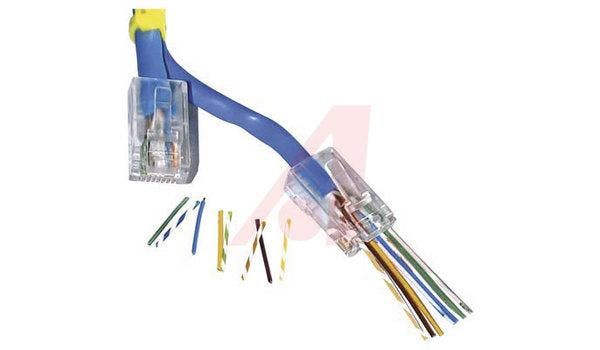

The new patented EZ-RJ45™ connector simplifies installation, allowing the twisted cable pairs to insert through the connector. There is no difficult to handle liner or wire bar to deal with. Inspection of the correct conductor order is done before crimping so no connector is wasted due to incorrect wiring. The conductors are pulled forward so the pairs are very close to the contacts. This method allows the integrity of the pairs to maintain Category 5, and even enhanced Category 5 capabilities.
The EZ-RJ45™ can be crimped with almost any standard tool, then trimmed with a cutter or small utility knife. However, the new BD45000 crimp tool crimps and trims the exposed conductors in one operation. The vertical action of the crimper makes a uniform and positive crimp.


  • Easy Conductor Identification
  • Meets Enhanced Cat 5 and Level 6
  • Trim with Utility Knife or Crimp and Trim with BD45000 Tool.
  • 15 micro inches of gold plating
  • 8P8C
  • Category 5 Plug



  •
  •

Number of Contacts:8 | Primary Type:Modular | Specification:RJ45 | Agency Approvals:UL | Special Features:Plugged | Contact Plating:Gold | Type:Plug | Termination:Crimp | Angle:Straight | Performance:Cat 5 |
