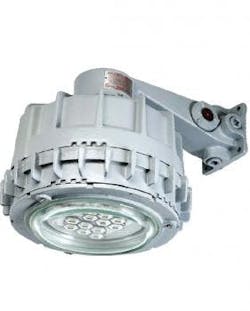

Specifying LED lighting in oil refineries, chemical processing plants and other hazardous locations is a difficult process, one that is complicated by the presence of ignitable vapors and dusts. To simplify specification, Appleton has introduced its new line of Code-Master (TM) LED explosion-proof luminaires engineered for Class I, Division 1 hazardous environments and offering the industry's widest range of lumen outputs and mounting options. Appleton Code-Master LED luminaires improve energy efficiency in any harsh, corrosive or hazardous industrial location, delivering an impressive 110 lumens per watt or nearly twice the efficacy of competing luminaires. They are ideal for both new construction and in retrofit applications where the versatile housing will thread into the existing mounting hoods of the original Appleton Code-Master HID with no need for rewiring or changing mounting locations. Upgrades from competing luminaires are also possible thanks to the Code-Master LED accepting input ranges of 120-277 Vac and 347-480 Vac without a step-down transformer. Replacing existing HID fixtures with the Code-Master LED can reduce energy consumption up to 55%. Like all Appleton LED products, the Code-Master LED minimizes end-user maintenance requirements. It generates 60,000+ hours of safe, dependable lighting, greatly reducing the frequency of relamping as well as the cost of part replacement and maintenance. In the unlikely event of failure, components can be replaced in the field using simple hand tools. In addition, the Code-Master LED features a heavy duty copper-free aluminum housing with a baked epoxy powder coat finish for extreme durability in highly corrosive environments. Instant-on performance supplies consistent, naturally colored light with no warm-up time, restrike issues or end of life cycling; this is especially beneficial in locations where lights are often turned off and on. Appleton Code-Master LED luminaires are available in a broad assortment of designs equivalent to HID lamps from 70 to 400 Watts. The low profile and optional diffused glass globe ensures adequate clearance and minimal glare in low ceiling applications, while the highest lumen output models provide ample lighting at mounting heights of 25 feet or higher. Mounting options include pendant, ceiling, wall bracket and 25-deg stanchion, all featuring the same Acme double lead threaded design to speed installations. An optional lens guard, safety chain and fuse are available for added protection. In addition, customers can download free DIALux software and IES files on the Appleton website. Appleton Code-Master LED luminaires meet NEC/CEC code requirements for Class I, Div.I, II and III, IP66/67, NEMA Type 3R and 4X for wet locations, and Marine Outside (salt water). Installing the Code-Master LED may qualify for government incentive programs and tax credits.
- Lumens / Watt: 110, nearly twice the efficacy of competing luminaires
- Input Ranges: 120-277 Vac and 347-480 Vac
- Life: 60,000+ hours
- Standards: Appleton Code-Master LED luminaires meet NEC/CEC code requirements for Class I, Div.I, II and III, IP66/67, NEMA Type 3R and 4X for wet locations, and Marine Outside (salt water). Installing the Code-Master LED may qualify for government incentive programs and tax credits
