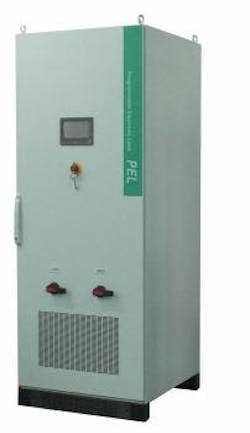

Built around a 60 kVA chassis, the PEL Regenerative AC Electronic Load Bank can be paralleled for higher power requirements and returns over 90% of load test power to the utility grid. It also provides adjustable power factor from 0.3 to 1.0 to simulate a range of load conditions as well as independent phase control and a built-in measurement system. The PEL Series also offers load sequence transient generation for creating complex, variable and repeatable load conditions.
- Accepts standard AC input ranges from 120 to 480V
- Returns 90% of the equipment under test (EUT) load power back to the utility
- Simulates: load sequence transient generation, power factor and phase control
- Load Setting Modes: constant current, constant resistance and constant power
- Adjustable power factor: 0.3 to 1.0
- Starting at $51,975
