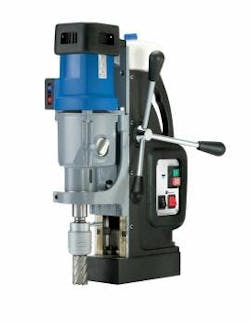

MAB 825 V portable magnetic drills feature an automatic feed mechanism with power retraction, making them suitable for production applications. The 16 Amp, double-insulated, reversible motor has a 4-speed oil bath gearbox for applications requiring high power. The magnet has a holding force of 6,600 lb. With infinitely variable torque control and full-wave electronics, this heavy-duty drill cuts up to 4-in. diameter holes in structural steel and other metals.



It also performs twist drilling and reaming up to 1.25-in. diameter, tapping up to 1.16 dia., and countersinking up to 2 in. A stroke length of 10-in. makes the MAB 825 V ideal for steel engineering, plant construction, and more. This unit has a quick-change keyless cutter system for .75-in. Weldon Shanks, saving time and money.

Motor Power16 Amp / 110VWeight 68 lb.Hole Capacity4.06-in. dia. (103.12 mm)Twist Drill Capacity1.25-in. dia. (31.75 mm)Tapping Capacity1.13-in. dia. (28.7 mm)Stroke10 in. (254 mm)Speeds40-110, 65-175, 140-360, 220-600 RPMMagnet Base Size8.63 L x 4.33 in. W (219.2 x 110 mm)Dimensions18.63 H x 14.44 L x 9.44 in. W (473.2 x 366.8 x 239.8 mm)
Magnetic Force
(1-in. plate)
6,600 lb. (2,993.7 kg)Arbor Bore0.75 and 1.25 in. (19.05 and 31.75 mm) Weldon Shank, standardSpindleMT3 (optional)Automatic LubricationIncludedAutomatic FeedIncluded
  • Powerful and reliable
  • Automatic feed for production applications
  • Designed for continuous use
  • Quick-change keyless cutter system
  • Integrated cutting oil reservoir
  • Automatic internal lubrication
