Safety Iso. Transformer Stands Tall Against Direct Short

Aug. 10, 2015

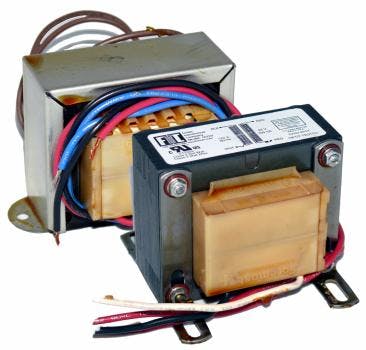

In addition to providing isolation for the connected load, the SELV Transformers are capable of withstanding a direct short-circuit in excess of 15 days, and require no external fusing. These transformers are ideal for HVAC, appliance, vending, battery charging, security, irrigation control, lighting control, and other applications requiring a Class 2 or SELV safety isolating transformer.



  • Certified to EN 61558-1, EN 61558-2-6,latest edition of EN 60335-1
  • Inherently Limited Class 2 transformers under UL 5085-1, UL 5085-3, CSA C22.2 No. 66.1-06, and CSA C22.2 No. 66.3-06
  • Input voltage ratings: 115 to 460V, 50/60 Hz, (dual voltage models for N.A. / European applications)
  • Output ratings: 75 VA and 100 VA
  • Output voltages: 24V or 26.5V
  • Connection options: lead wires, glow wire compliant terminals, and terminal blocks. Custom configurations and designs welcome.
