Threshold Detectors for Microwave & MM Wave Applications
Oct. 9, 2015
Related To: Pasternack Enterprises, Inc.

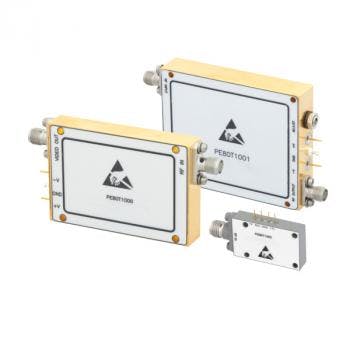

This line of coaxial threshold detectors,commonly used for analyzing radar performance, leveling pulsed signal sources, AM noise measurements, system monitoring and pulsed RF measurements in ultra-broadband applications, includes three models covering broadband frequency bands from 2 to 40 GHz.
They incorporate gain stages for higher dynamic range that cover input power levels ranging from -45 dBm to 0 dBm with a typical threshold variation over frequency of ± 0.5 dB. One model supports a fixed threshold while the other 2 models support an adjustable threshold setting.
- meet MIL-STD-202F environmental conditions for temperature cycle, humidity, shock, vibration and altitude
- Extremely fast response times ranging from 45 to 100 nanoseconds
- Maximum input power handling ranging: 10 to +17 dBm
- Operating temperature range: -55° to 85 C°
