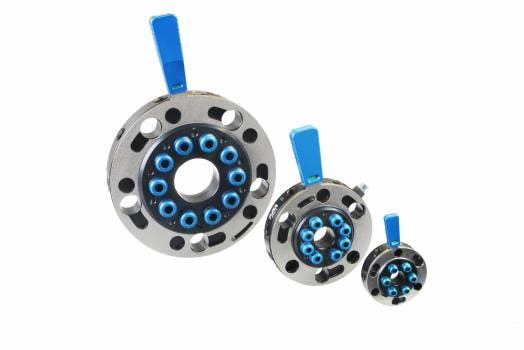

Round Quick-Changers with a Robust SAFE-LOCK Mechanisms provide an extremely reliable connection between assembly & material handling robots & gripper systems. Designed to withstand strong vibrations and rapid acceleration, the new SR Series quick-changers feature innovative, snap-on SAFE-LOCK mechanisms, color-coded locking indications (red for locked, green for open), and pneumatic air connections incapable of being misaligned, ensuring maximum functional reliability and further improving process safety.
- Diameters: 50 mm, 90 mm, and 150 mm
- Made of high-strength, anodized aluminum alloy
- withstand strong vibrations and rapid acceleration
- high repeat accuracy of +/- 0.025 mm
- Withstand working pressure of up to 6 bar and working vacuum of up to -1 bar
- 50 mm: maximum lift capacity of 200N; weight of 65 g, 50Nm torque; and 30 Nm bending moment
- 90 mm: maximum lift capacity of 400N, weight of 320 g, 100Nm torque and 60 Nm bending moment
- 150 mm: maximum lift capacity of 1,000N, weight of 1,190g, 250Nm torque and 100Nm bending moment
