PMIcontrol 6 Series of HMIs Combine Visualization & Control

June 8, 2016
Pilz Automation's HMIs bring together full diagnostics and visualization of the entire plant for complete control with just one unit.

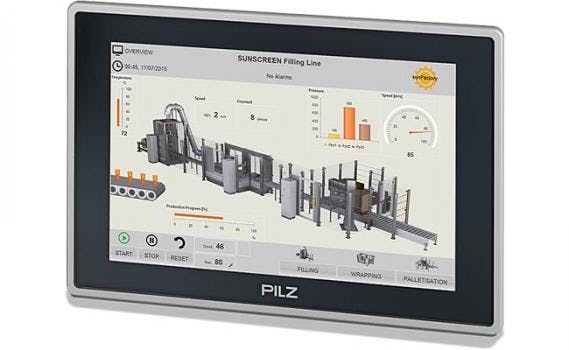

With the PMI (Pilz Machine Interface) 6 Control, Pilz has introduced its first terminal with a soft PLC in accordance with IEC 61131-3 standards. This terminal goes beyond diagnostics and visualization, making it possible to control the entire plant process in just one unit.



Operator terminals, PMI 6 Control, are based on a high-performance processor module with 1.3 GHz. Together with 512 MB RAM, 512 MB flash memory capacity, and the OS Windows Embedded Compact 7, the result is a high-performance platform for all applications. Faster diagnostics and visualization of the plant and machinery are possible in conjunction with Pilz control technology.

  • Three versions: 7, 12 or 15-in. glass touchscreen
  • Intuitive operation
  • User-friendly visualization
  • Works with any standard HMI visualization software
  • Software packages are easy to install
  • Control, visualization, and diagnostics of plant and machinery
  • Soft PLC in accordance with IEC 61131-3 Standard
  • High productivity due to comprehensive diagnostic solutions (PVIS) for small controller PNOZmulti
  • Integrated CANopen and Modbus TCP Master functionality
  • Windows Embedded Compact 7
  • Target visualization of CODESYS
  • PLC, motion, and CNC functionality
