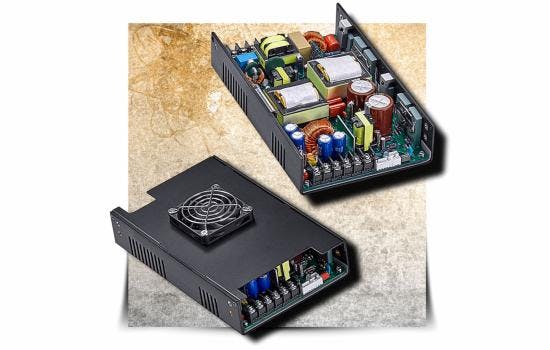

MPU-600CS Series, available now from MicroPower Direct, provides 600 w of output power in a compact U-channel package. These power supplies feature a universal ac input; active power factor correction; full safety approvals; robust filtering and compact, low profile construction. Standard models operate from a universal input of 90 to 264 v ac, providing tightly regulated single outputs. Outputs are factory set to 12, 24, or 48 v dc, but are available over a range of 2 to 60 v dc (contact the factory). Standard features include a peak output power to 900 w, filtering to EN 55022 Class B, active power correction to EN 61000-3-2 D and an input/output isolation of 3,000 v ac. All models are protected for over load, over temperature, over voltage and short circuit faults.
Features include:
- 600 w output power
- Universal 85 - 264 v ac input
- EN 60950 approved
- Low-profile, U-channel case
- PFC to EN 61000-3-2 "D"
- Meets EN 5022 & EN61000-4
- Housekeeping signals
- Available with top or end fan
