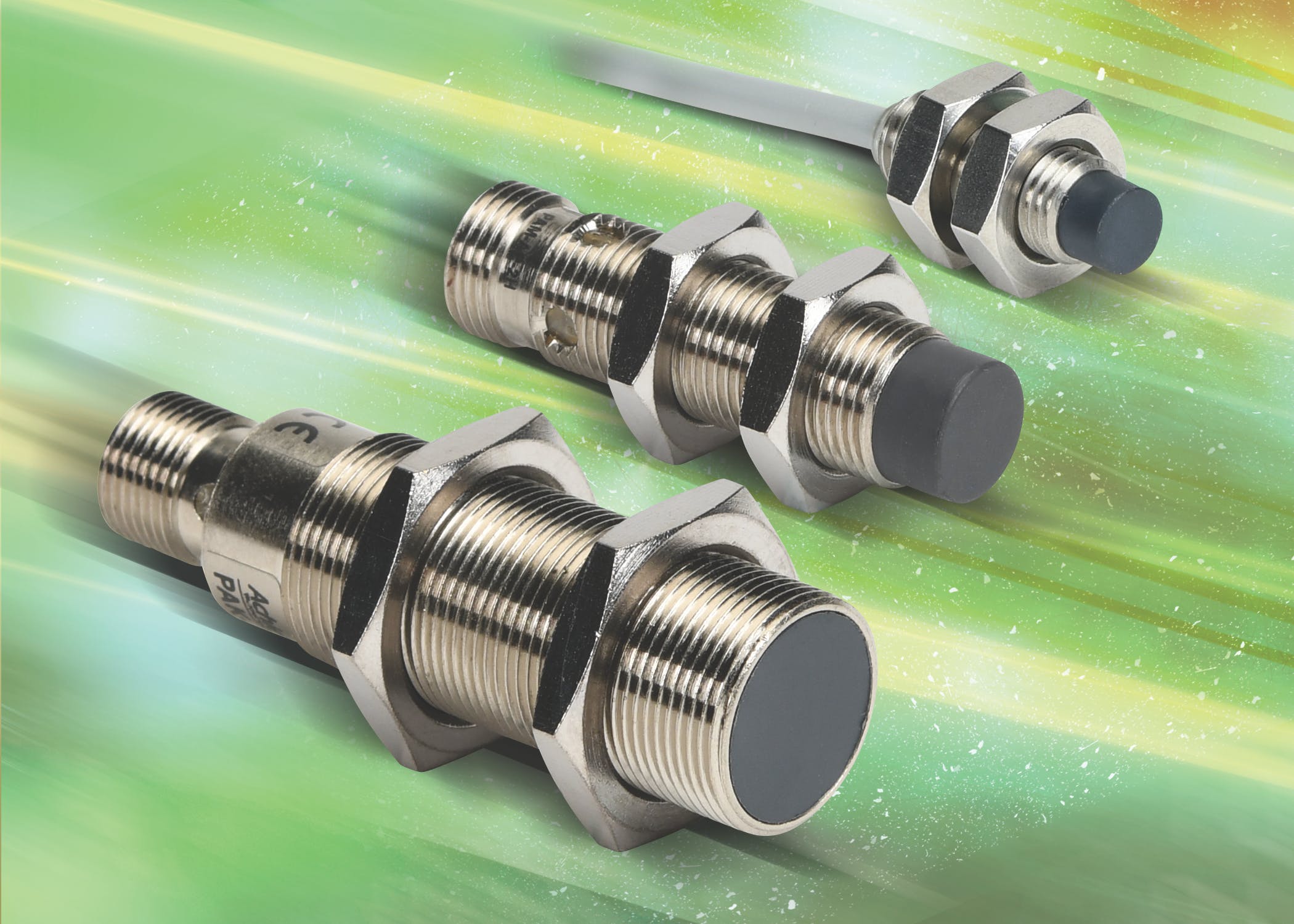

AchieVe Series Value Line of Inductive Proximity Sensors

AutomationDirect has added its value line of AchieVe series of inductive proximity sensors. These tubular inductive proximity sensors made from stainless steel are offered in 8, 12, and 18-mm barrel sizes. Flush and non-flush mount styles offer a range of sensing distances up to 8 mm.

Both PNP and NPN logic models are available, and all have a NO output. Connection options include an M12 Q/D connector for 12 and 18-mm models, an M8 Q/D connector for 8-mm models, and a 2-m pigtail cable style available for select PNP logic models.

The AchieVe series has an IP67 rating.

Features:

• 1.5 to 10,  1.5 to 6, or 5 to 20 mm sensing distances
• Flush, semi-flush, and non-flush mounting options
• NO or NC discrete and analog output options; 0 to 5 and 0 to 10V DC analog output options
• PNP, NPN, NPN DC, and AC output models
• Up to 7 kHz switching frequency
• High-pressure rating 500 bar (7,251 psi) on select models
• Available in a variety of operating voltages and housing materials
• High-temperature ratings of up to 284°F (140°C), 302°F (150°C),  and 446°F (230°C) depending on model
• IO-Link and harsh-duty versions available
• Axial cable and quick-disconnect termination styles
• Up to IP69K protection ratings
